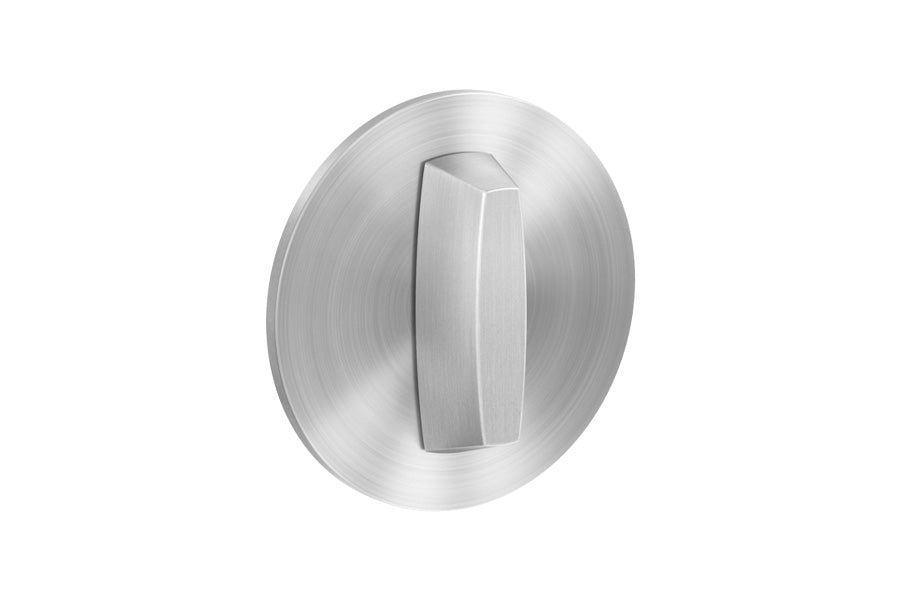

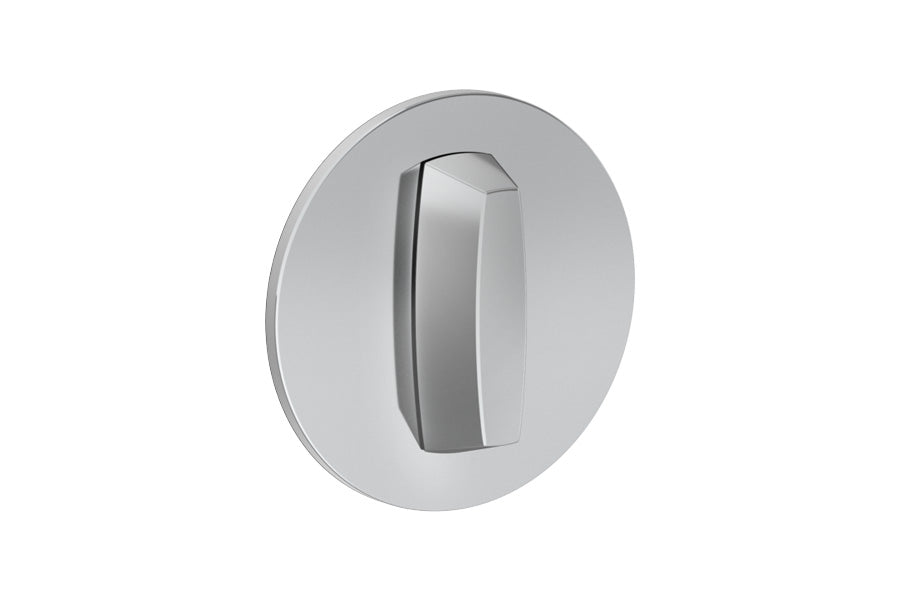

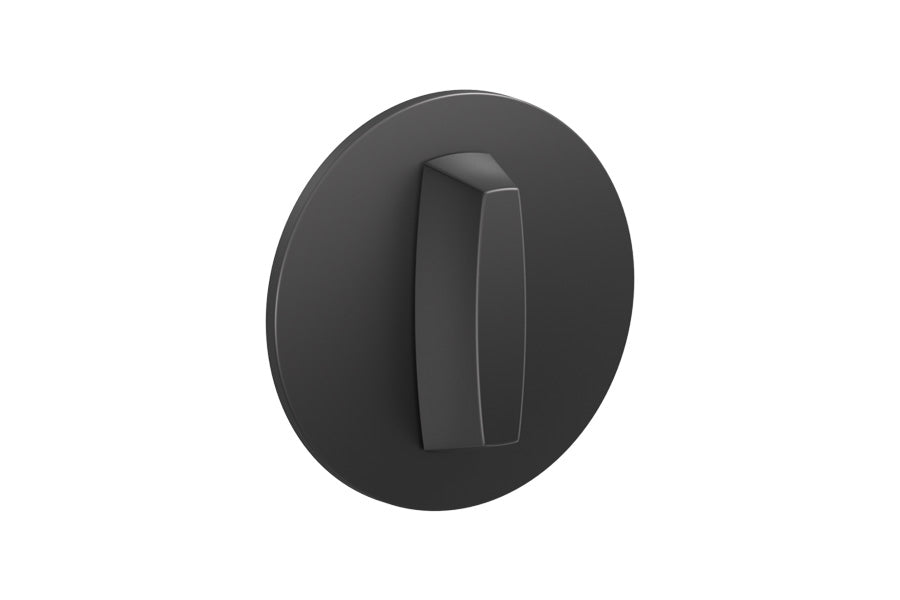

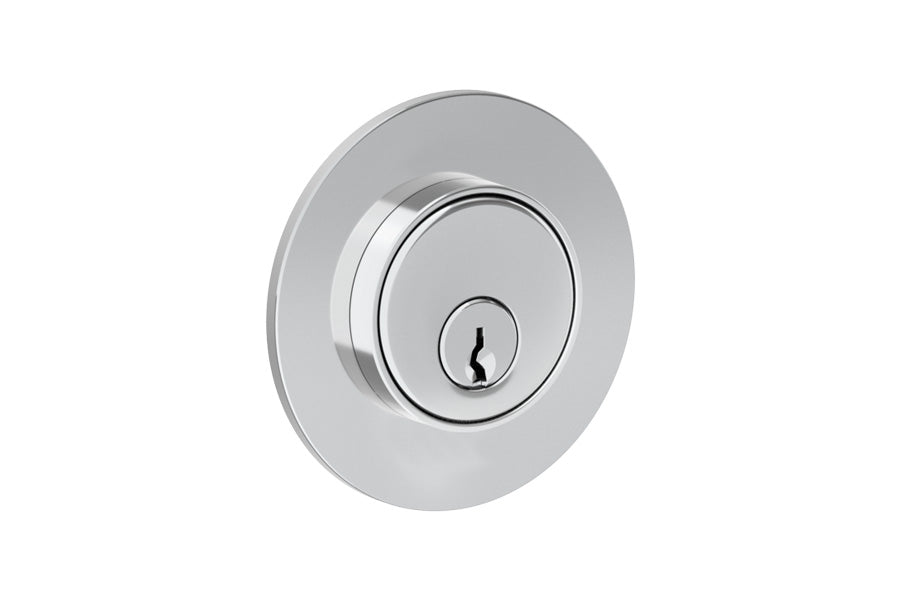

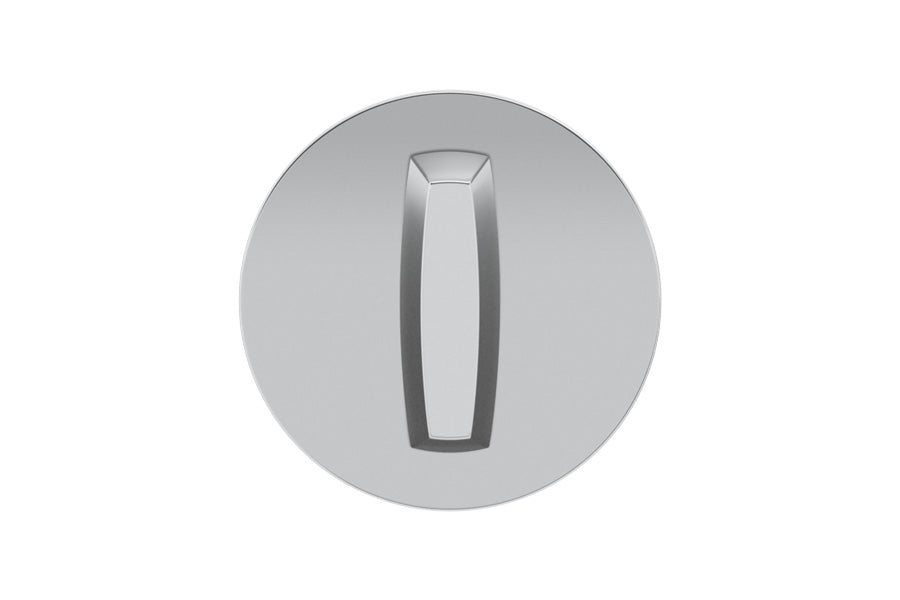

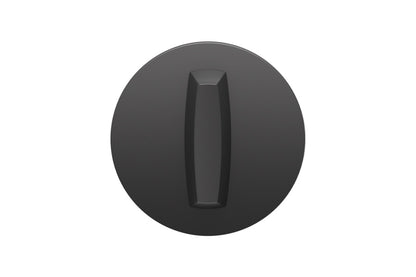

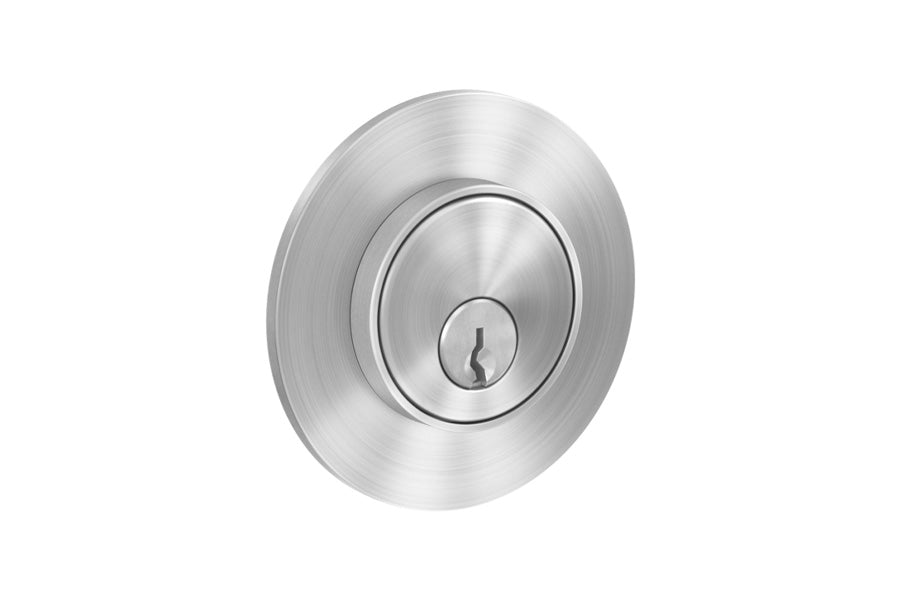

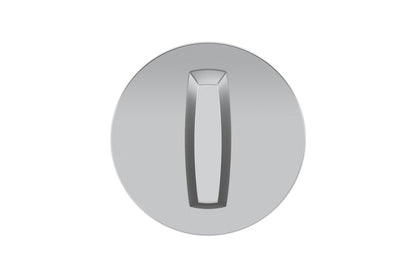

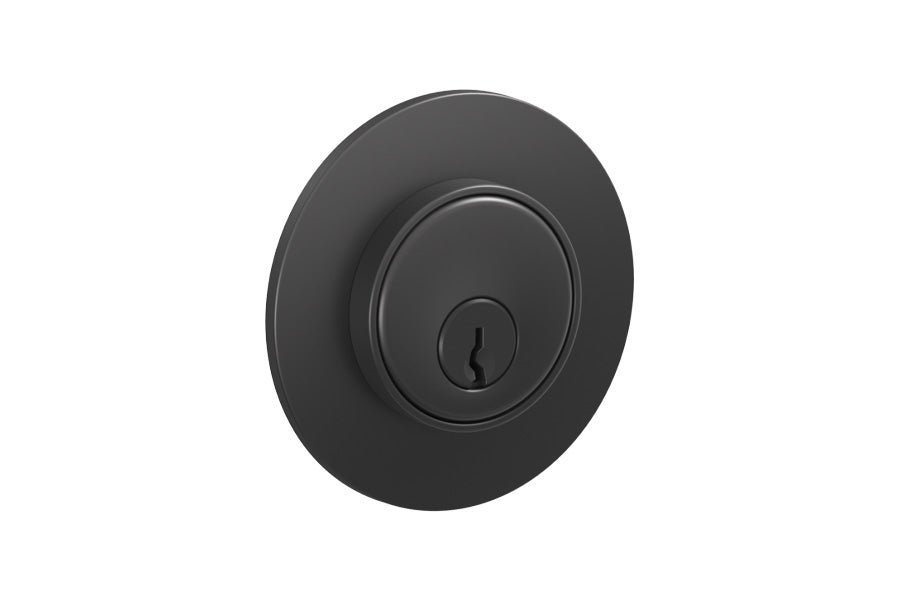

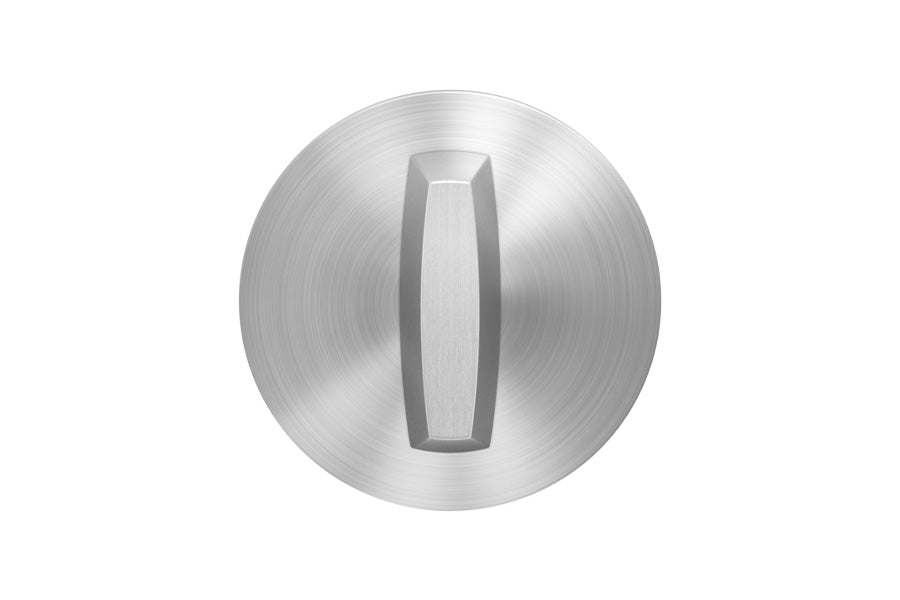

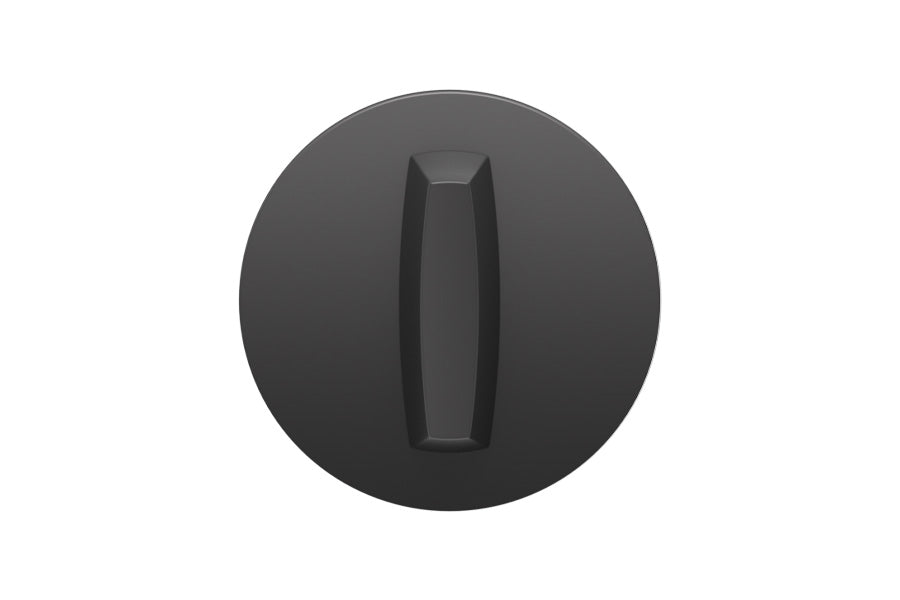

Karcher UEDB200 Round Single Cylinder Deadbolt

Specifications

• Shape:  Round
• Base Construction:  Plan Design Rose
• Material:  Stainless Steel
• Backset:   Adjustable 2-3/8" (60mm) - 2-3/4" (70mm)
• Minimum Standard Door Thickness:  1-3/8" (35mm)
• Maximum Standard Door Thickness:  2-5/16" (58mm)
• Screw Type:  Concealed fixings
• Rose Diameter:  2-5/8" (67mm)
• External Thickness:  3" (3mm)
• Internal Thickness:  3" (3mm)
• Drilling Diameter:  2-1/8" (54mm)
• Keyway:  C-Keyway

Reference

• Installation Instructions
• Drilling Template
