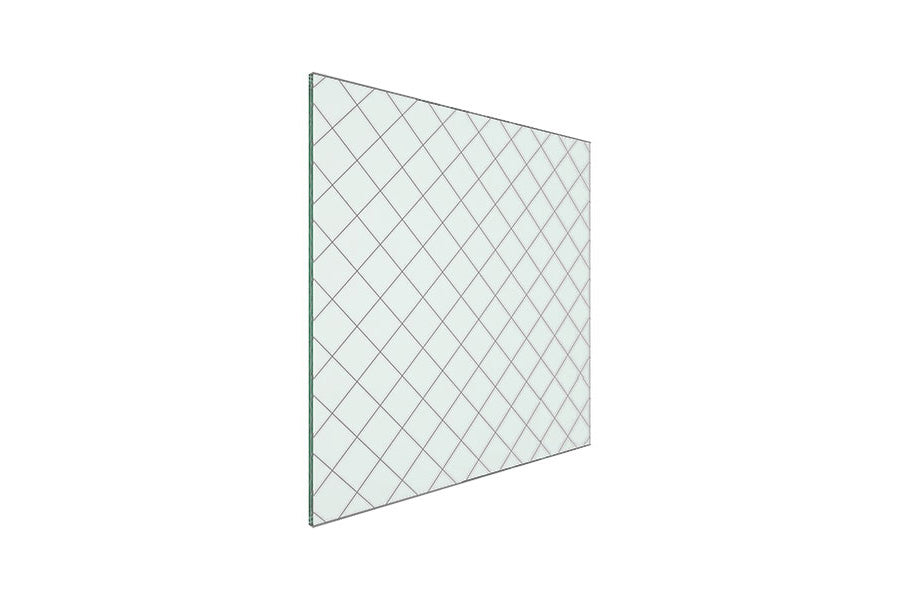

Cal-Royal WireShield (WS) Glass

Specifications

• PROTECT3™ Wired Safety Glass, Fire-Rated
• Fire-Rated up to 90 minutes with hose stream
• UL classified and UL labeled
• Impact-Safety rated to ANSI Z97.1 and CPSC 16CFR1201, CAT I and II
• Passes 400 ft-lb impact tests
• Annealed single glazing with safety film applied to one side
• Passes air blast testing - minimum Level 3 @ 4.0PSI
• Embedded 3/4" x 3/4" wire mesh
• Light Transmission:  86% approximately
• Thickness:  1/4" (6 mm)
• Minimum Size:  4” x 4”
• Maximum Sheet Size:  48” x 96”

Reference

• Technical Specification
