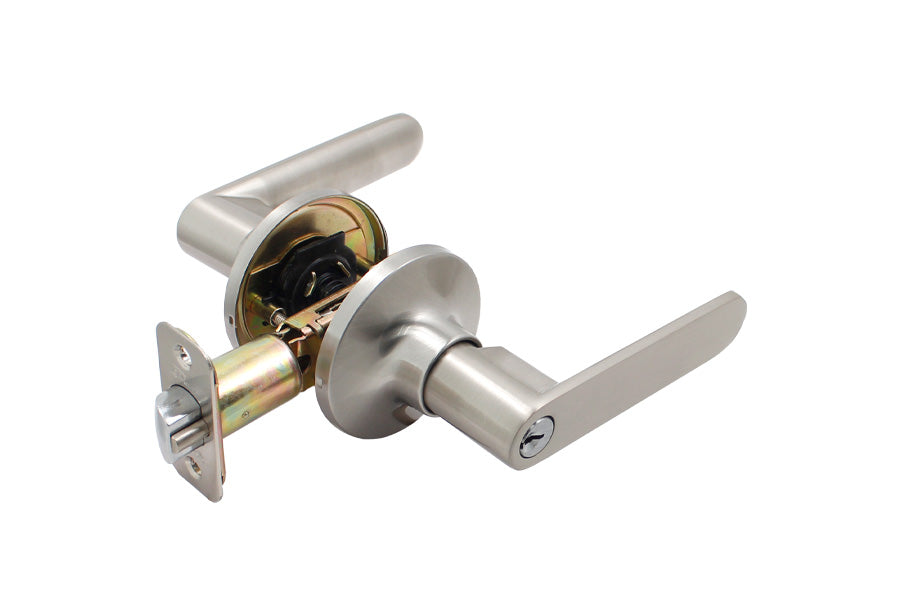

Cal-Royal Vanguard Series Novus Design Residential Leverset

Specifications

• ANSI Standard A156.2 Grade 3
• Kwikset 5-Pin keyway, re-keyable for Master and Construction Keying
• Optional Weiser and Schlage "C" keyway available
• Fits 1-3/8" to 1-3/4" wood and metal door
• Reversible right and left handed doors
• All metal body and cylinder construction
• Full 1" throw deadbolt with hardened steel pin to prevent saw cutting
• Backset:  6-way 2-3/8" or 2-3/4" adjustable backset  convertible to drive-in
• Faceplate: standard 1" x 2-1/4" round corner
• Optional 1-1/4" x 3-5/8" security strike with 3" screws also available
