Cal-Royal SVL Kits, Vision Lite Low Profile

Specifications

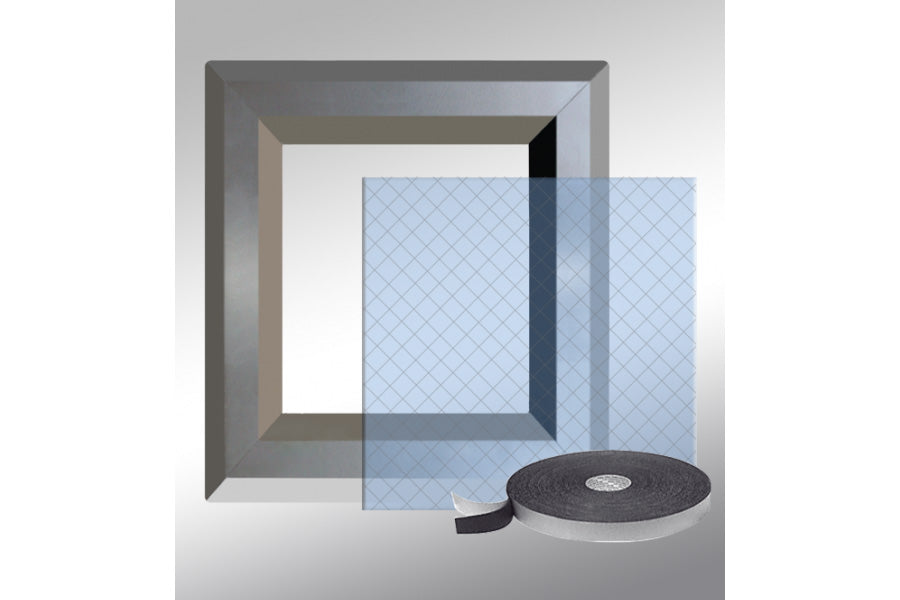

• Kit includes Vision Lite Frame, Glass (Non-Fired Rated Tempered Glass, Fire-Rated Protect3 Wired, Pyran Platinum F, Temp20), and Glazing Tape
• Low profile beveled vision lite
• 20 gauge cold rolled steel
• Mitered welded corners with counter sunk mounting holes
• Single side attaching with matching mounting screws included
• Designed for use with 1-3/4" doors only
• For use with 3/16” to 1/4" glass thickness
• For use in fire-rated door applications under positive and neutral pressure
• Fastener:  # 8 x ⅞” flathead phillips head SMS
• Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201) and CSI CODE 0870 00
