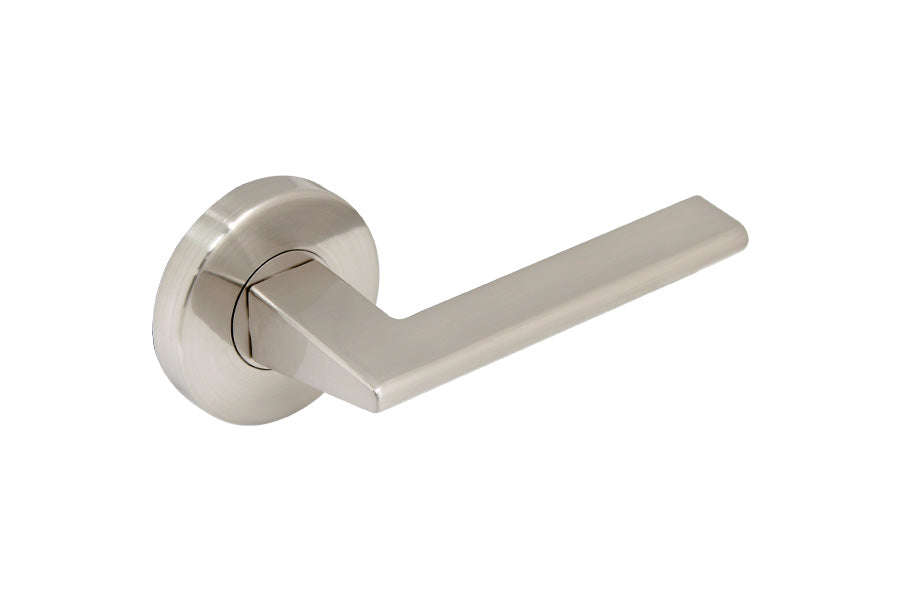

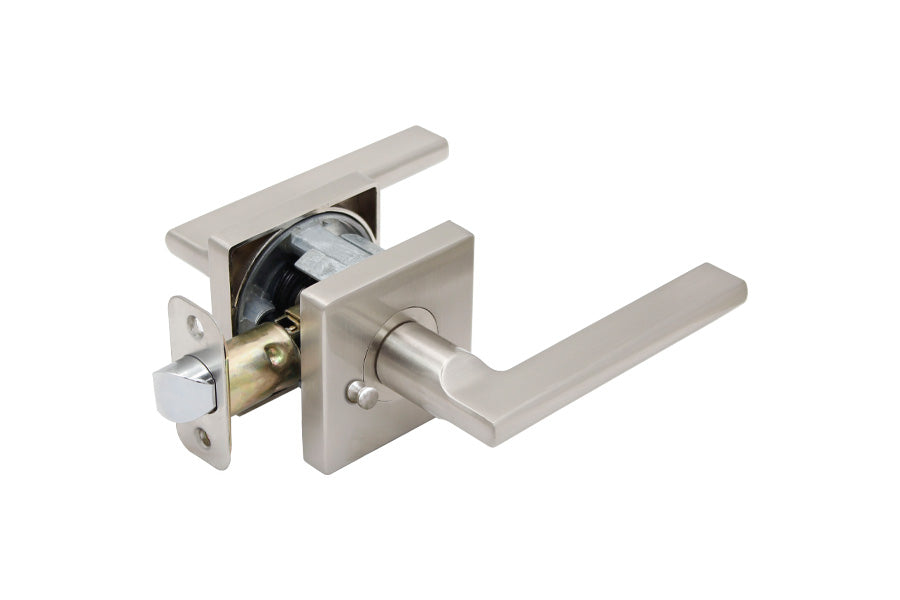

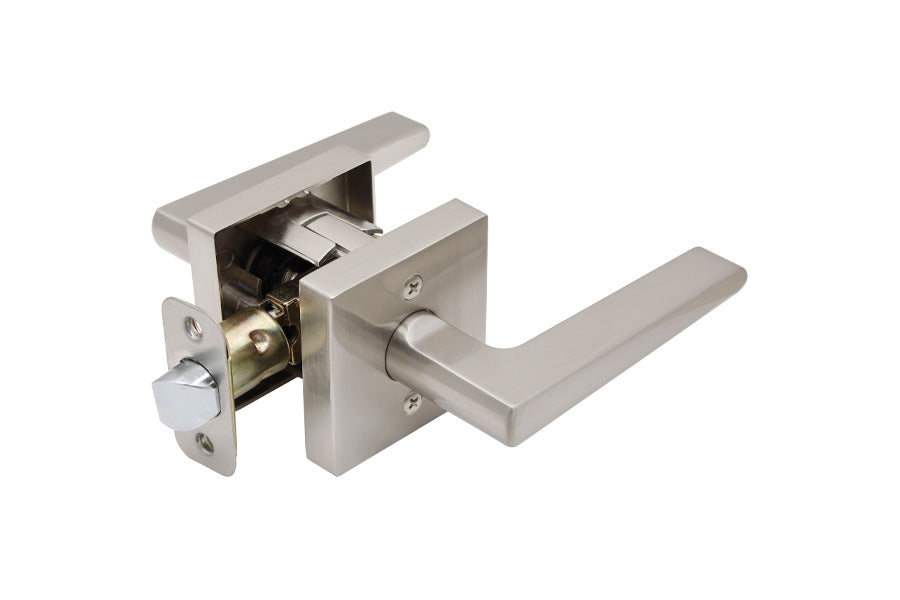

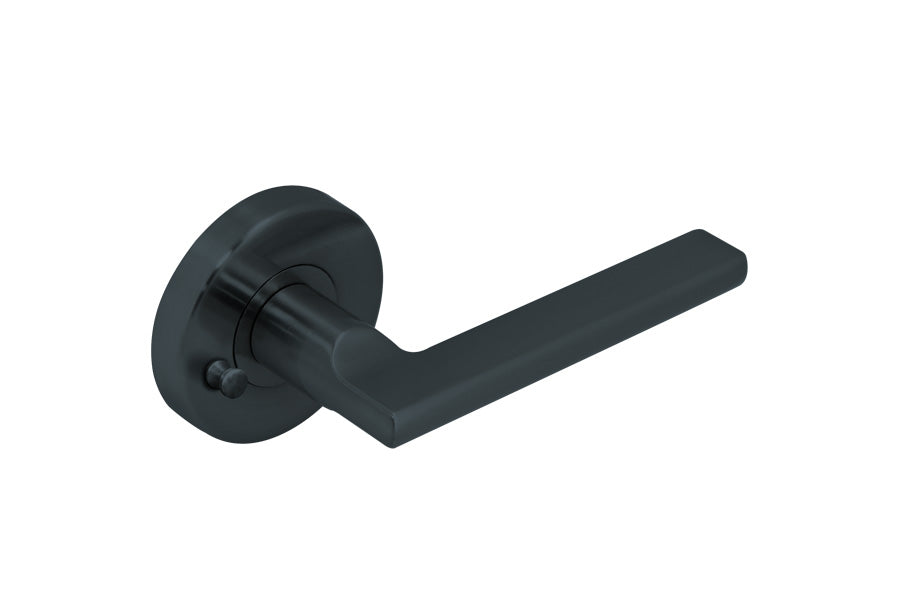

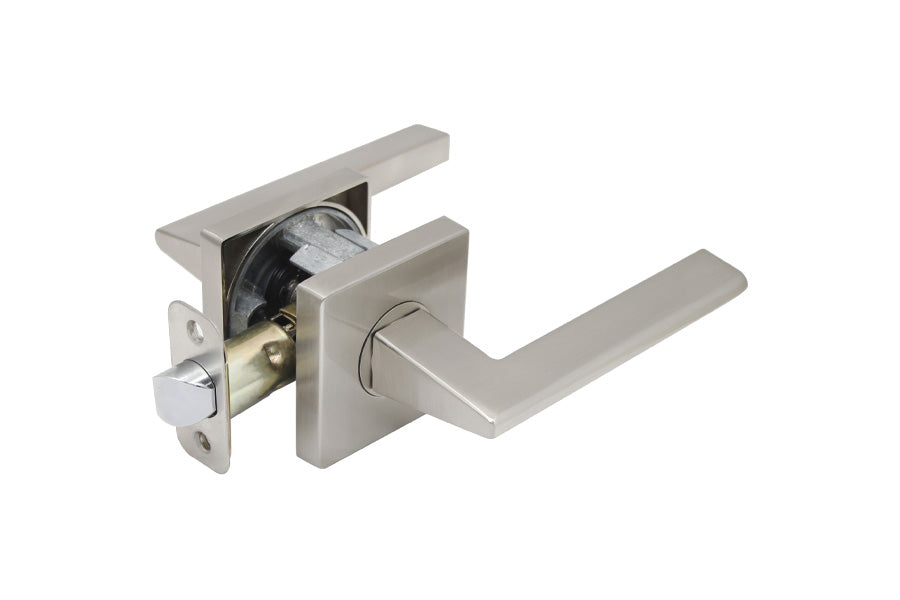

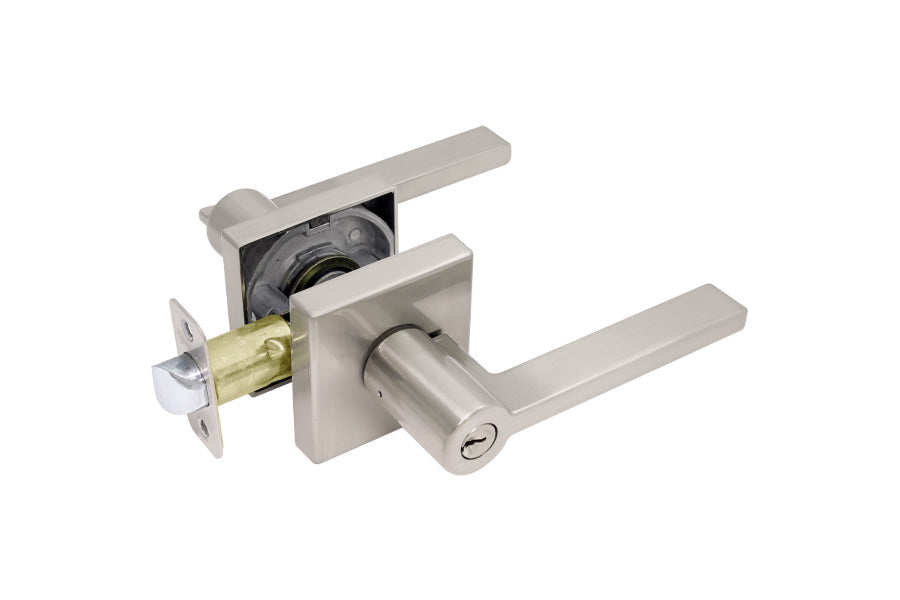

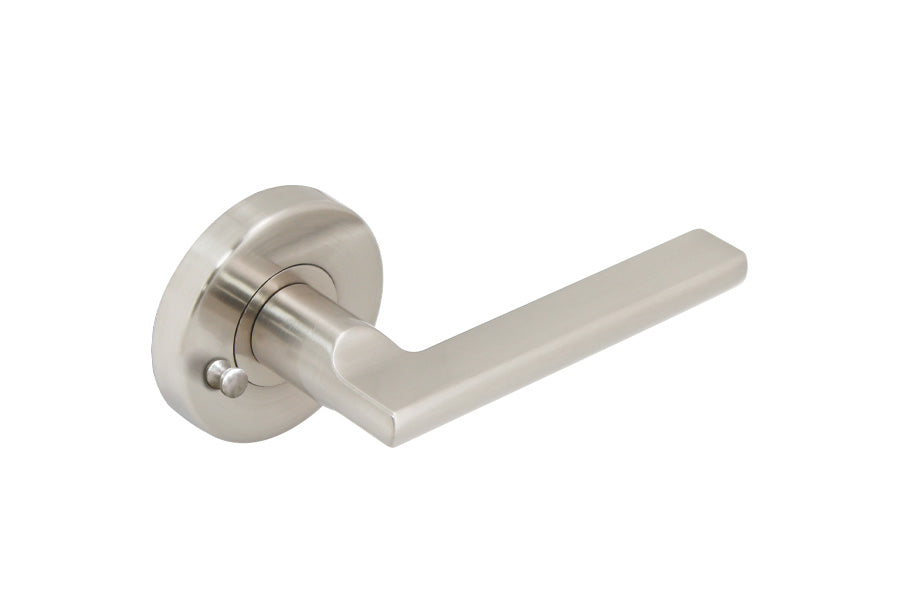

Cal-Royal SUMMIT Series Leverset

Specifications

• Meets ADA Requirements, specifically designed for barrier-free applications
• ANSI Standard A156.2 Grade 3
• with Push-Button Locking Mechanism and Auto-Release feature on Privacy Function
• Kwikset 5-Pin keyway, re-keyable for Master and Construction Keying
• Backset:  Packed with both 2-3/8" and 2-3/4" backset
• Faceplate: 2-1/4" x 1" faceplate
• Bore Diameter:  1" for latch, 2-1/8" for lock housing
• Strike:  1-3/4" x 2-1/4" round corner full lip strike, optional T-Strike available
• Fits 1-3/8" to 1-3/4" wood or metal door

Reference

• Technical Specification
