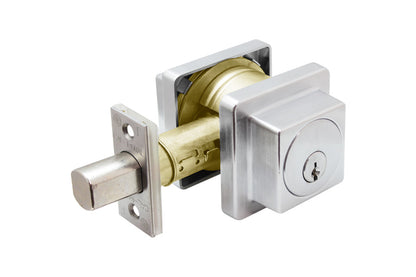

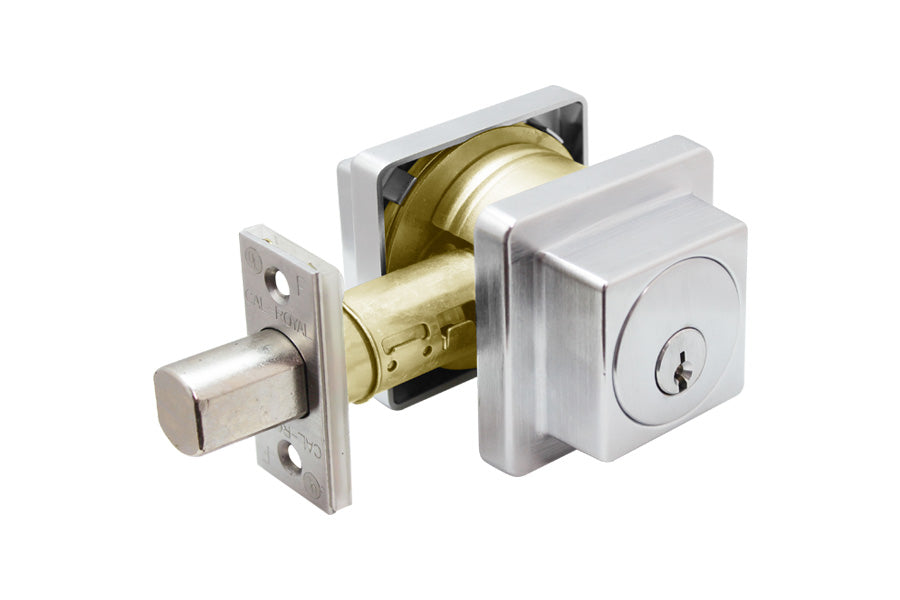

Cal-Royal SQ300 Series Contemporary Square Heavy Duty Deadbolt

Specifications

• For Commercial and Residential application
• Meets ADA requirements specifically designed for barrier-free application
• Conforms with BHMA/ANSI A156.36 Grade 2 requirements
• Wrought Brass or Zinc Trim
• Door Ranges:  1-3/8" (35mm) or 1-3/4" (45mm) door thickness
• Backset:  Adjustable UL Listed 3-Hour Fire Rating, 2-3/8" or 2-3/4" latch bolt.
• Deadbolt Faceplate: 2-1/4" x 1" faceplate with plastic filler to convert 1" faceplate to 1-1/8" wide door preparations
• Bore Diameter:  1" for latch, 2-1/8" for lock housing
• Strike:  1 ⅛” x 2 ¾” Square Corner, extra security 1" throw bolt with 1/4" free spinning anti-cut through pin.  2pcs x 3" screws with wood frame reinforcer greatly strengthens door frames.
• Keyways:  6-Pin Solid Brass "C" keyway standard
