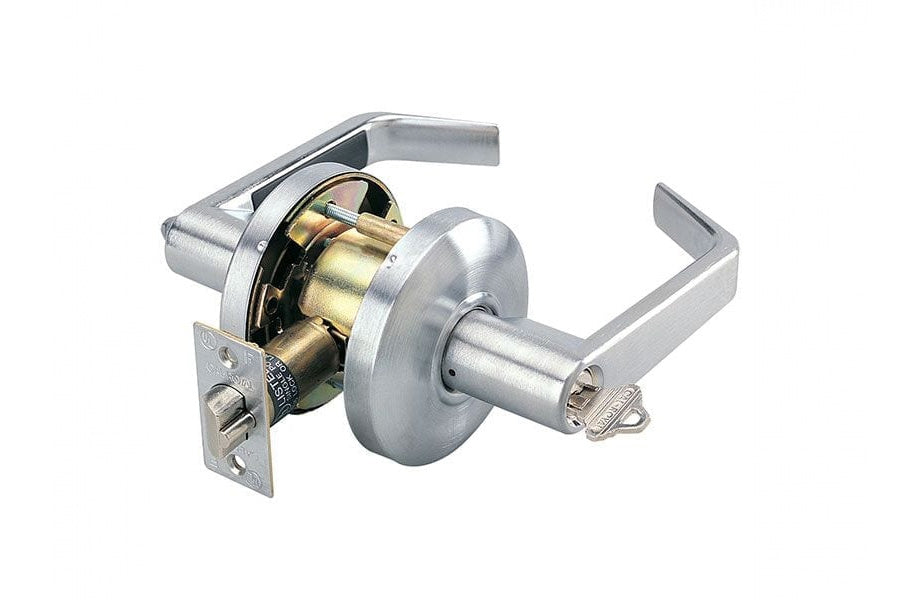

Cal-Royal Pioneer SL Series Grade 2 Non-Clutch Heavy Duty Cylindrical Leverset

Specifications

• For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings
• Door Ranges:   1-3/8" to 1-3/4" thickness door
• Backset:  2-3/4" Standard, Optional 2-3/8", 3-3/4", and 5"
• Latch Bolt:  UL Listed 1/2" throw solid brass, reversible RH or LH applications

• Latch Faceplate:  2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2”, for 2-3/4" backset. Optional 2-1/4" x 1” for 2-3/8" backset.
• Keying:  6-Pin "C" keyway cylinder
• Interchangeable Core available

Reference

• Technical Specification
• Installation Instructions
