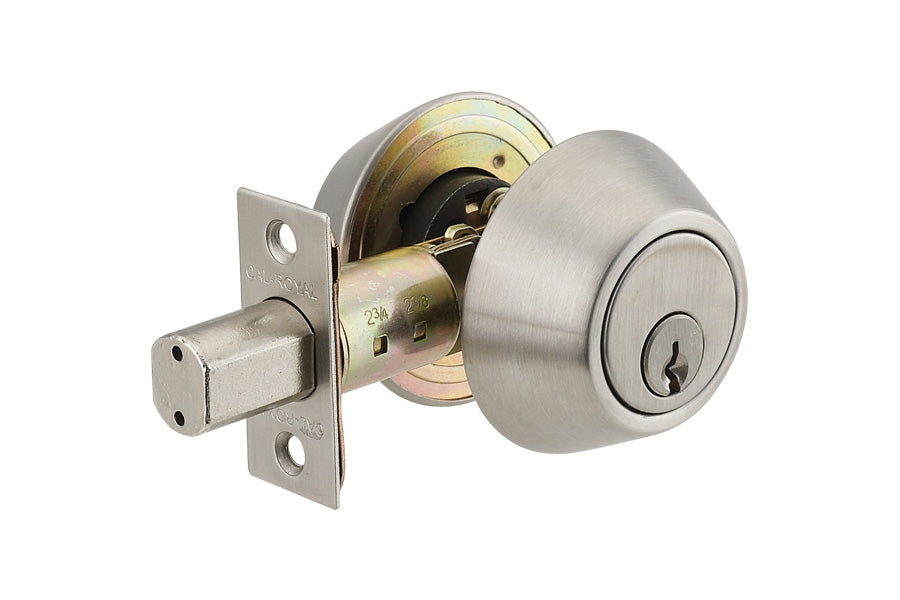

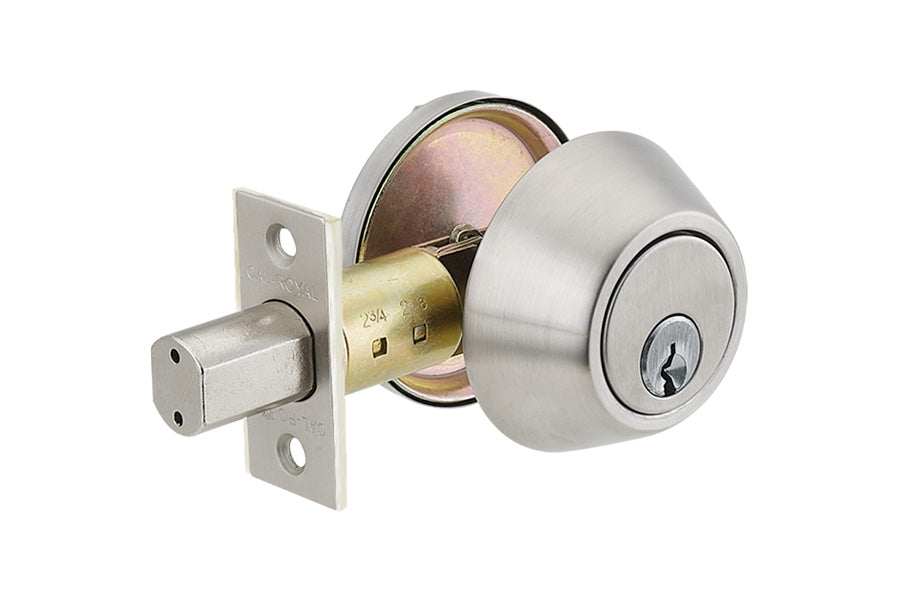

Cal-Royal LSD Series Standard Duty Deadbolt

Specifications

• For Light Commercial and Residential application
• Conforms with ANSI A156.36 Grade 3 requirements
• Wrought Brass or Stainless Steel Trim
• Door Ranges:  1-3/8" (35mm) or 1-3/4" (45mm) door thickness
• Backset:  2-3/8" or 2-3/4"
• Deadbolt Faceplate: 2-1/4" x 1" faceplate with plastic filler to convert 1" faceplate to 1-1/8" wide door preparations
• Bore Diameter:  1" for latch, 2-1/8" for lock housing
• Strike:  1 ⅛” x 2 ¾” Square Corner
• Keyway:  6-Pin Solid Brass "C" Keyway standard
