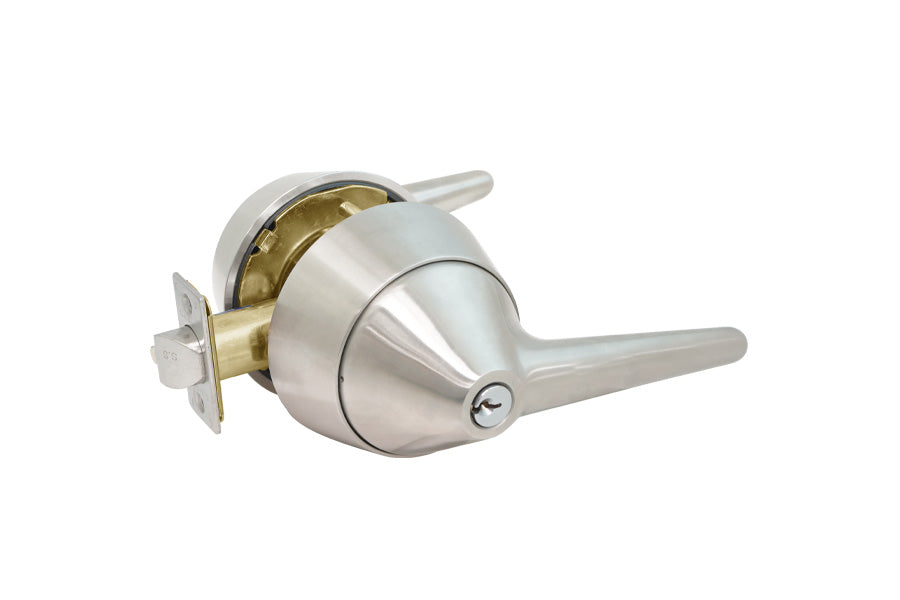

Cal-Royal LRC Series Grade 1 Heavy Duty Cylindrical Lockset with Ligature Resistant Lever

Features

• For Behavioral and Health Care facilities
• Lever clutch free-wheeling design helps to prevent intentional or
  accidental hanging
• The lever rotates when in locked or unlocked position to prevent
  excessive force and decreases the chance of the lever being
  broken or damaged
• Anti-vandal cylinder guard is standard, deters forcible removal
  of cylinder with any type of wrench or hammer
• Different functions available to satisfy individual security and safety requirements

Specifications

• For 1-3/8" to 2" thickness doors
• 2-3/4" Backset Standard, 2-1/4" x 1-1/8" Latch Faceplate,
• 2-3/8", 3-3/4", 5” and 2-3/4" Anti-Friction Latch Optional
• UL Listed, 1/2" Throw Solid Brass
• Reversible for RH or LH applications
• ASA Strike Standard
• Heavy Duty Stainless Steel Rose and Lever Trim
• Tamper Resistant Concealed Mounting Set Screws
• 6-Pin Solid Brass Schlage “C” Keyway Standard
• Small Format IC available combinated or uncombinated, 6 or 7 pin cores with BEST, FALCON, and ARROW
• Finish:  US32D Satin Stainless Steel

Reference

• Technical Specification
• Installation Instructions
