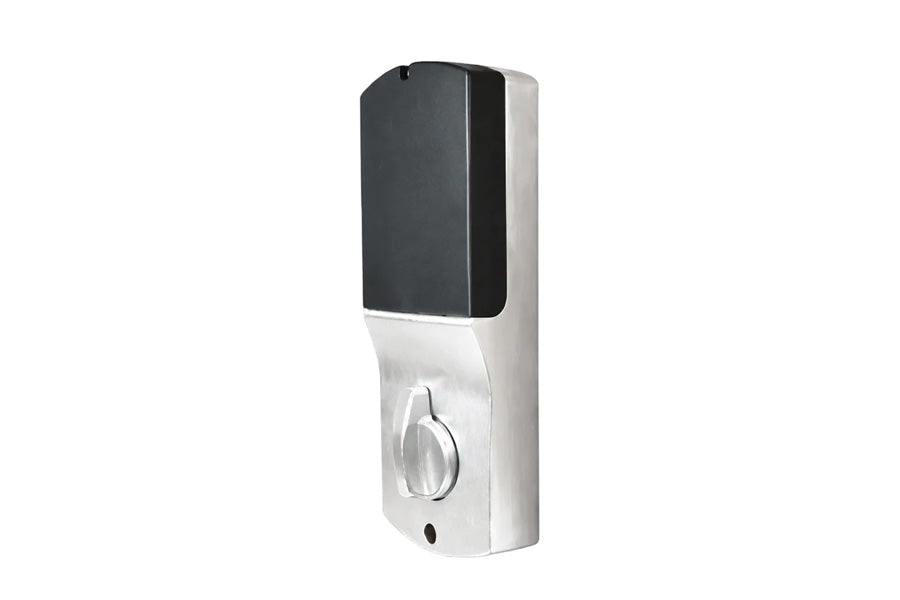

Cal-Royal JE-80M Series Grade 2 Digital Touchscreen RFID Smart Connect Deadbolt

Specifications

• Applications:   For offices, schools, hospitals, apartments, condo units, hotel / motel, residential, commercial and public buildings
• Door Ranges:   1-3/8" to 1-3/4" standard
• Deadbolt:   UL-Listed 2-3/4" or 2-3/8" adjustable motorized latch.  1” Throw.  Brass with hardened steel pin insert.
• Latch Faceplate:   Standard 2-1/4" x 1" faceplate, packed with 1/8" plastic filler for
  1-1/8" door preparations.
• Strikes:   2-3/4" x 1-1/8" square corner deadbolt strike.  Packed with (2pcs) 3" screws and wood frame reinforcer
• ANSI Standards:  Meets ANSI / BHMA A156.12 Series 5000, Grade 2 requirements
• Cylinder:  6-Pin solid brass “Schlage C” keyway standard with two brass keys per lock
• Proximity RFID Card (Standard):   2 pcs. included. Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1-3/16”.
• RFID Keyfob (Optional):  Dual Frequency Enamel Fobs (125KHZ + 13.56MHZ)
  Size: 1-1/8” x 2”.  Comes with Metal keyring
• Power Supply:   4 AA 1.5V Alkaline Batteries (comes standard in packaging)
• Smartphone Connectivity (Optional):   Lock can be managed / synced using the ExperienSmart app for both Apple & Android phones. (Smart Connect Module installation required)
• Weather Resistant:  All models are weather resistant for temperature ranges of -30°F ~ 150○F (-35°C ~ 66°C) at 85% relative humidity.F ~ 150°F (-35°C ~ 66°C) at 85% relative humidity.
• Touchscreen:  Responds to human touch enabling convenient entrance or access to programming menu. After operation has been completed, the lock reverts to sleep mode
