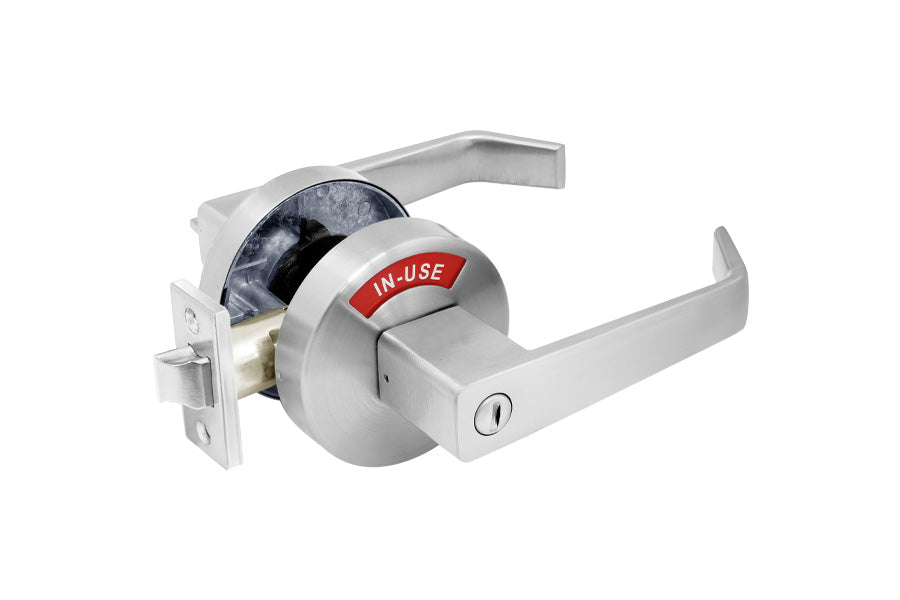

Cal-Royal INDLEV-20 Privacy Indicator Leverset

Specifications

• For Light Commercial application
• Stainless Steel Rose Cover and Aluminum Lever Trim
• Door Ranges:  1-3/8" (35mm) or 1-3/4" (45mm) door thickness
• Backset:  Packed with both 2-3/8" and 2-3/4" backset
• Deadbolt Faceplate: 2-1/4" x 1" faceplate with plastic filler to convert 1" faceplate to 1-1/8" wide door preparations
• Bore Diameter:  1" for latch, 2-1/8" for lock housing
• Strike:  ASA478 ANSI Strike standard
• Features an emergency slot on the outside trim to unlock the door in case of emergency
• Reversible handing

Reference

• Technical Specification
