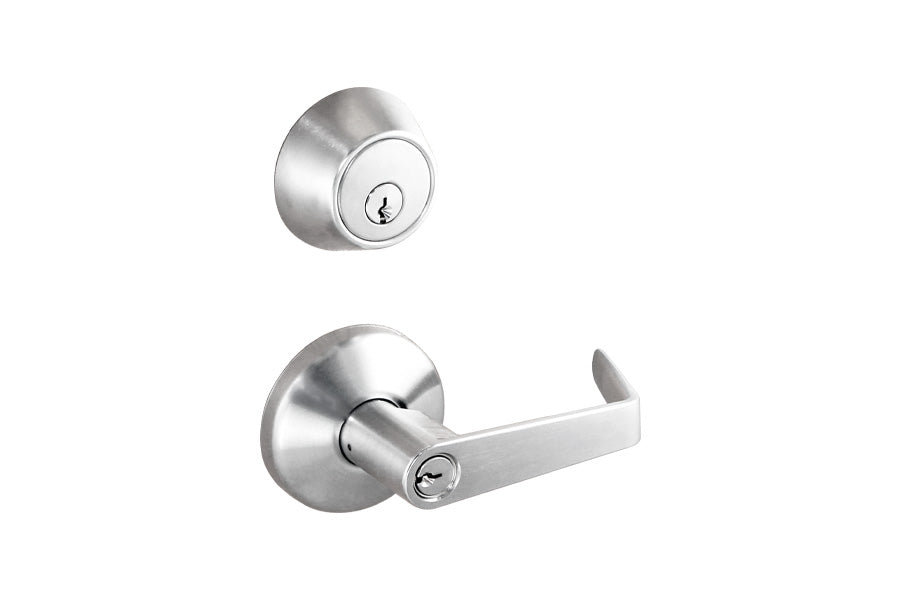

Cal-Royal HIL Series Grade 2 Interconnected Leverset

Specifications

• Simultaneous retraction on both latch and deadbolts from inside by turning the lever in a panic-proof exit situation. Top lock is heavy duty deadbolt with the bottom lock having a cylindrical body . High security with a double locking point using the keyed lock function.
• ANSI Standard:  Meet ANSI A 156.12 Series 5000 Grade 2 Requirements.
• Cylinder and Keyway:  6-Pin solid brass “C” keyway, Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High security Cylinders.
• Interchangeable Core:  Interchangeable Core Locks will accept compatible 6 or 7 pin cores with BEST, FALCON & ARROW. Prefi x “IC” before part number. Available combinated or uncombinated. Temporary construction cores and factory keying with control key & master key available.
• Lever Length:  4-1/4"
• Strike:  Standard “T” strike furnished with lockset. 2-3/4" x 1-1/8" square strike with deadbolt.
• Escutcheon:  2-11/16” x 7” brass plated. Packed with interior escutcheon. Optional external escutcheon available.
• Functions:  Classroom, Storeroom and Dummy available upon request.
• Deadbolt:  1” Throw. Brass with hardened steel pin. Adjustable 2-3/4" or 2-3/8", front 2-1/4" x 1-1/8" square face.
• Latch Bolt:  “UL” Listed for 3 hour doors. 2-3/4" standard backset, 1/2" throw.
• Latch Face:  Standard 2-1/4" x 1-1/8" for 2-3/4' backset.  2-1/4" x 1" for 2-3/8" backset optional.
• Door Range:  1-3/8" – 1-3/4" door thickness.
• Housing:  Steel and Zinc dichromate finish for rust resistance.
