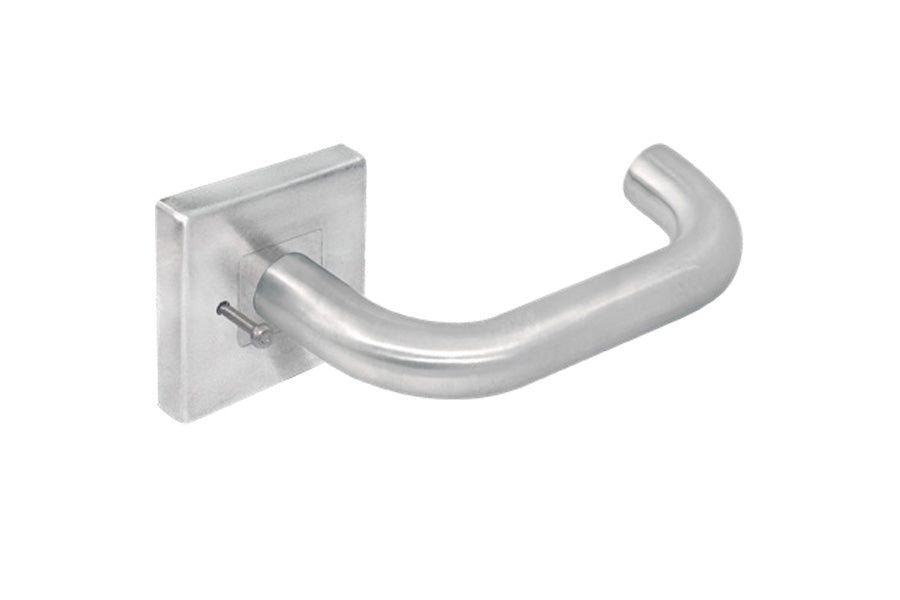

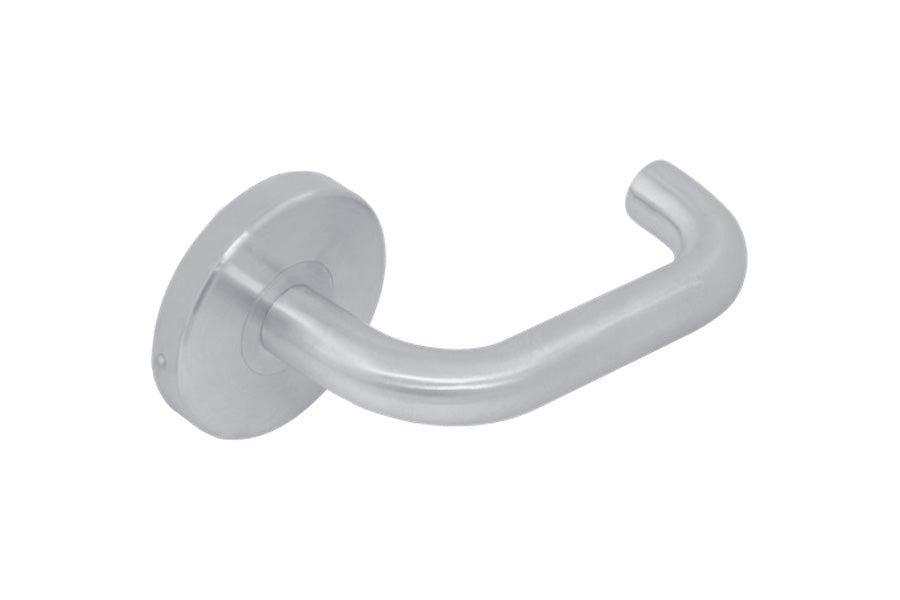

Cal-Royal Grand Series Wilson Design Standard Duty Tubular Leversets

ANSI Standard A156.2 Grade 2 Standard Duty Tubular Leversets

• For hotel/guest rooms, high-end apartments, condominiums, office buildings, and home offices
• Non-clutch mechanism
• Optional thru-bolt installation
• Non-Handed
• Backset:  2-3/4" or 2-3/8" backset.  Optional 90-minute Fire-Rated UL Listed Latch also available.
• Latch Faceplate: 2-1/4" x 1" faceplate with plastic filler for 2-3/4" backset; 2-1/4" x 1" faceplate for 2-3/8" backset
• Door Ranges:  1-3/8" to 2" thickness doors.  2" thickness available upon request.
• Keying:  6-Pin Schlage "C" keyway cylinder standard
• Fire Rating:  UL/cUL listed up to 3 Hours
• Strike:  T-Strike standard.  Optional ANSI and Full Lip Strike available.
