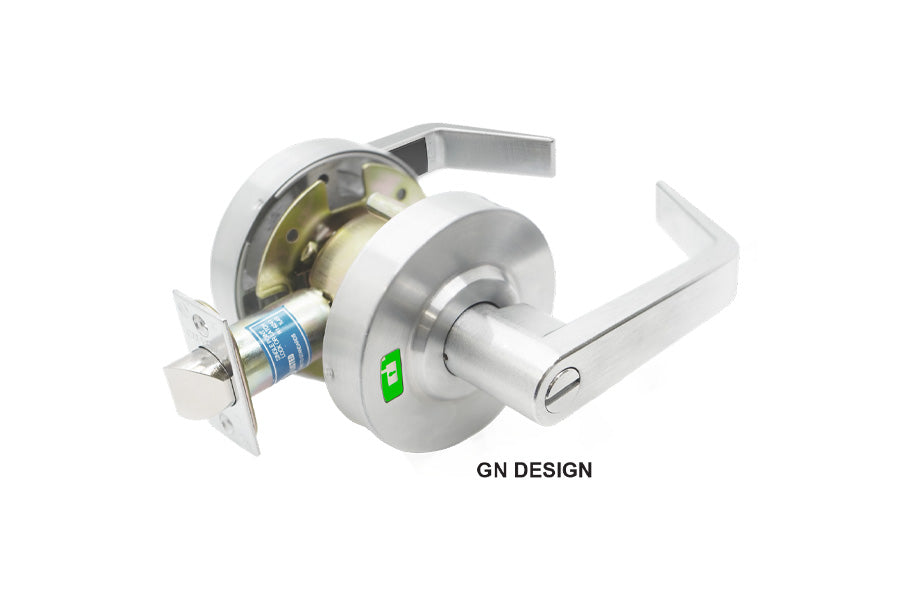

Cal-Royal Genesys INDCGN-20 Series Grade 1 Non-Clutch Privacy Indicator Deadbolt

ANSI Standard A156.2 Grade 1 Heavy Duty Cylindrical Leversets Non-Clutch Privacy Indicator Deadbolt

• For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings
• Fixed thru-bolt installation

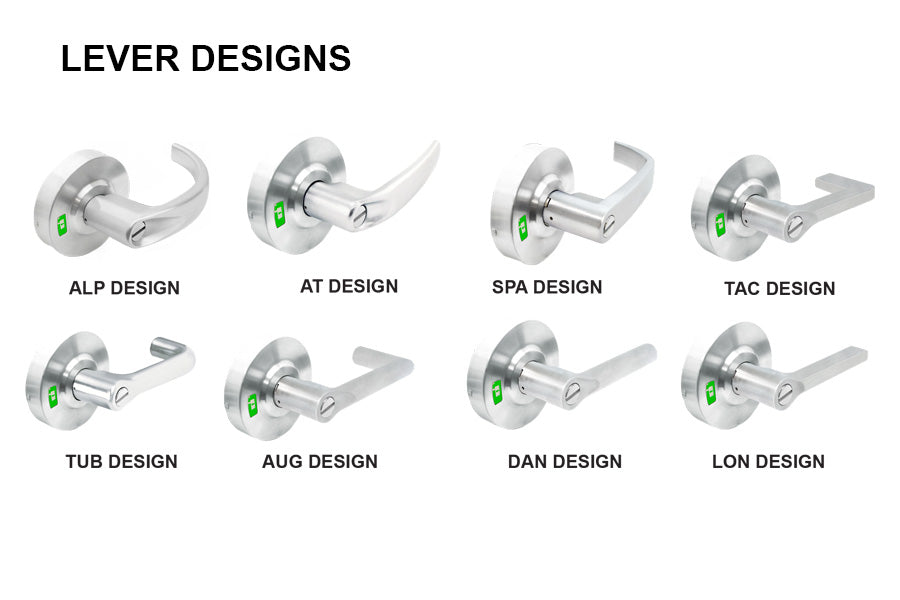

• Full length: 4-3/4" lever handle with 3/8" return
• Rose diameter: 3-9/16"
• Non-handed levers
• Concealed mounting screws
• Backset:  UL Listed 2-3/4" with 2-1/4" x 1-1/8" faceplate
• Latch:  2-3/4" brass with 1/2" throw
• Door Ranges:  1-3/8" to 1-3/4" thickness doors
• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike
