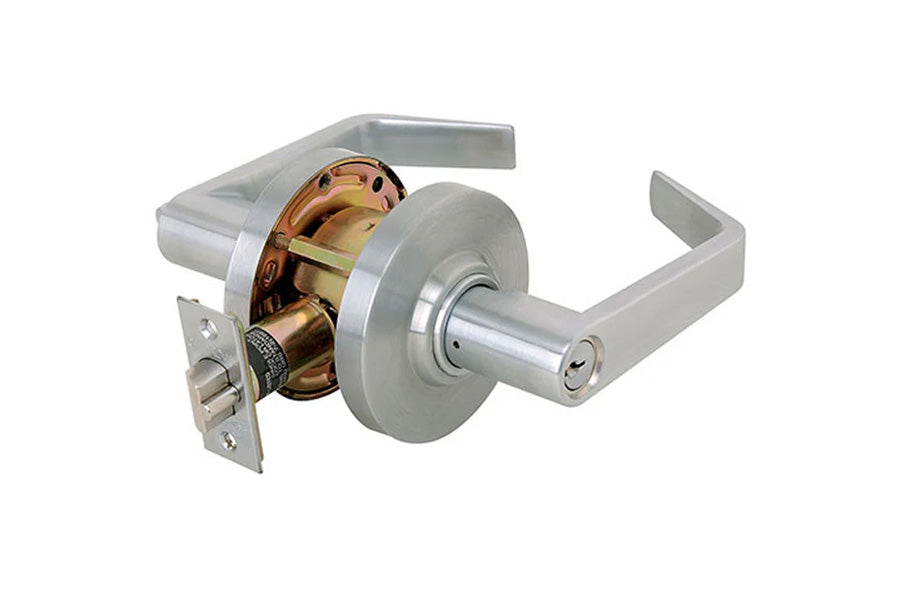

Cal-Royal Explorer XP Series Heavy Duty Cylindrical Leversets

ANSI Standard A156.2 Grade 2 Standard Duty Cylindrical Leversets

• For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings
• Non-clutch mechanism
• Optional thru-bolt installation
• Non-Handed
• Backset:  2-3/4" Standard. Optional 2-3/8" backset
• Latch: 1/2" throw, deadlocking – 1" x 2-1/4" square corner, packed with 1/8" filler for 1-1/8" width
• Door Ranges:  1-3/8" to 2" thickness doors
• Keying:  6-Pin Schlage "C" keyway cylinder standard
• Fire Rating:  UL/cUL listed up to 3 Hours
• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike

References

1. Technical Specification
2. Installation Instructions
