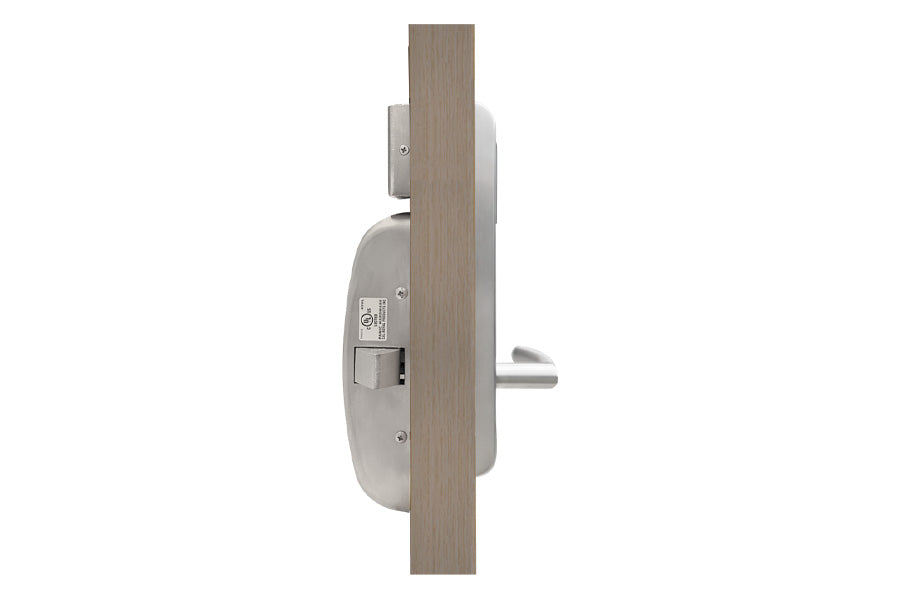

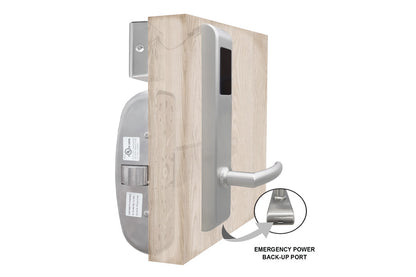

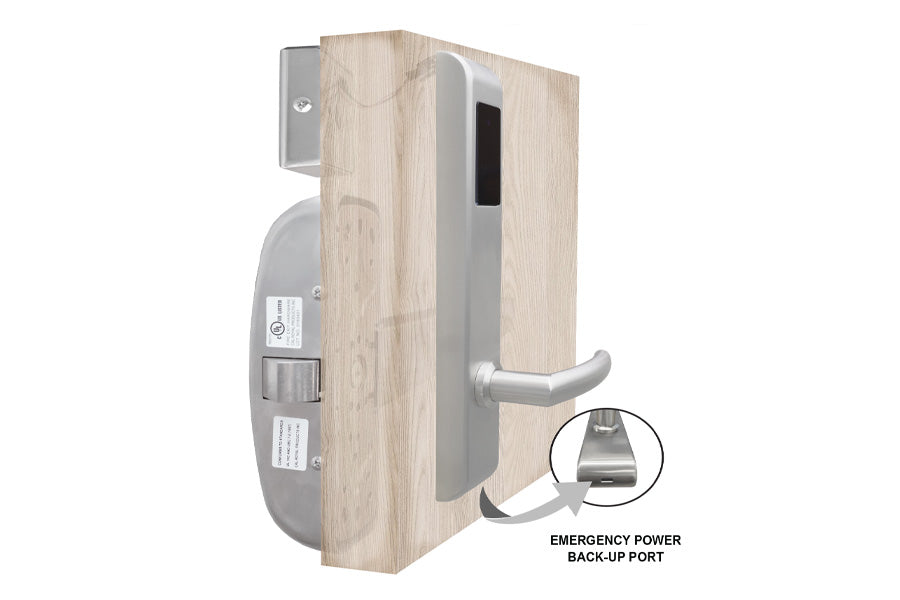

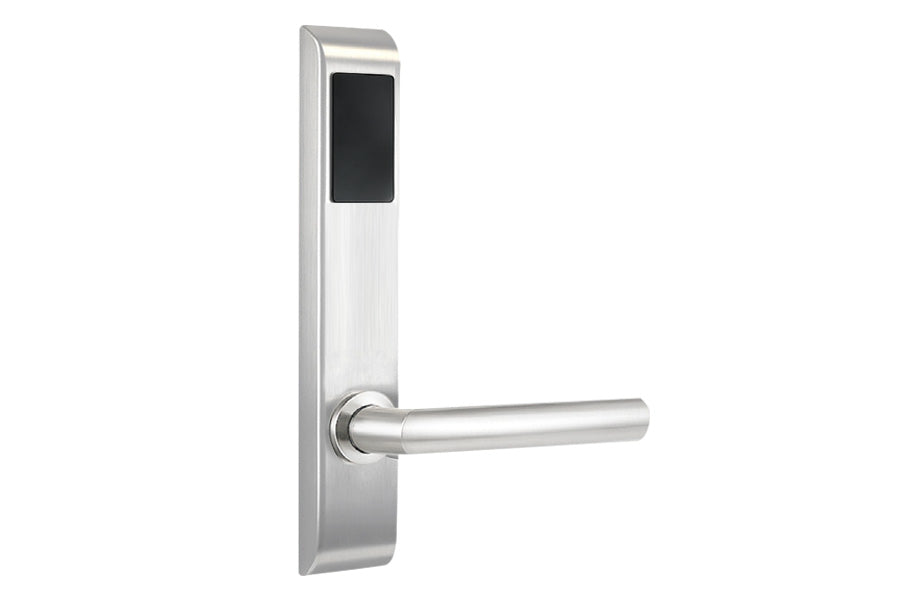

Cal-Royal EXCR9298D Smart Digital Mortise Lock Exit Device Trim

Features

• Apple and Android Compatible

• Can be managed or sync using the TUYO/TTLOCK app.

• Smart Phone connectivity; WIFI lock and unlock

• Keypad Anti-Tamper Lockout
• Key/Thumbturn Turning Detector
• Passage Mode
• Anti-peeping function
• Optional Auto Re-locking
• Restricted Access Right
• One-Time User PIN Code
• Low Battery Indicator
• Factory Default Passcode

Specifications

• For offices, apartments, hotel/motels, residential, and commercial
• ANSI/BHMA A156.2, Grade 2
• Door Thickness:  1-1/2 to 2-3/8
• Backset:  2-3/4"
• Latch Faceplate:  8" x 1-1/8" Square Corner
• Clutch:  Clutch technology allows turning of lever without retracting
  latch. Thus prolonging the life of the lock by reducing stress on
  the spindle and other parts.
• Cylinder:  6-Pin "C"

• AAA x 4 Alkaline Batteries (Included in the box)
• Type C USB emergency cable
• Weather Resistant
• Compatibility: Compatible with Exit Devices 2200 Series, 6600 Series, 5000
  Series, 7700 Series, and 9800 Series. RIM DEVICE ONLY.

Reference

• Technical Specification
