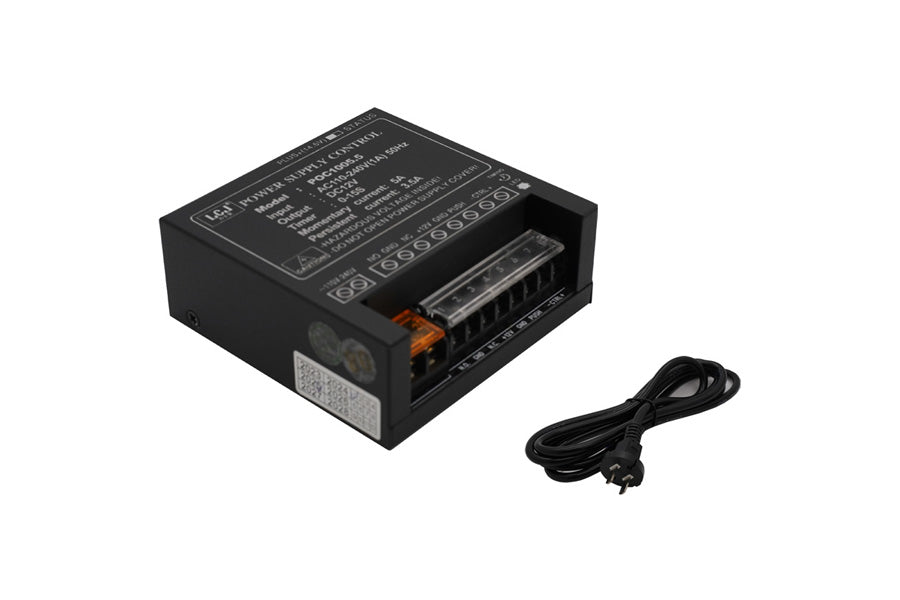

Cal-Royal CRPSC-R Power Supply for CRK-2

Power Output Overview

12V 3A power supply unit for access control systems. Supplies power to controller and directly controls electric locks via built-in relay with delay timer.

Features

Compact and Powerful power supply for controllers of access control systems. The power supply has a built-in relay with a timer for pulse duration adjusment, which allows simultaneous control of the lock from several devices (intercom, controller, exit button, smart home, etc.)

Specifications

• Dimensions:  101mm x 90mm x 35mm
• Input Voltage:  AC110V–240V, 50/60Hz
• Output Voltage:   DC12V–14.5V
• DC Current:  5A
• Tripping Current:  3.5A
• Operating Temperature:  -20°C to 60°C
• Operating Humidity:  >90%
• Timer Adjustment Range:  0 - 15 seconds
• Material:  Aluminum frame / Tempered Glass Panel
