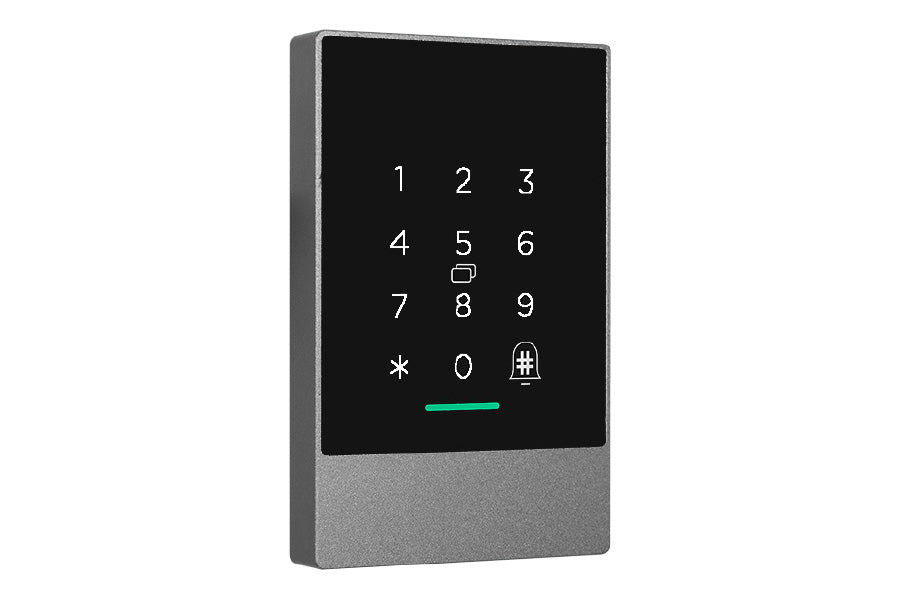

Cal-Royal CRK-2 Smart Access Control

Waterproof controller for access control systems.  Suitable for electronic locks, gates, and barriers.

Specifications

• Card Capacity:  20,000 (MF 13.56MHz)
• Dimensions:  79mm x 125mm x 15.5mm
• Supporting System:  Android 4.3 / IOS7.0 above
• Power Supply:  DC12V
• Material:  Aluminum frame / Tempered Glass Panel
• Access Via:  MF/NFC cards, Passwords, Smartphones
• Recommended Usage Areas:  Hotels, Apartments, Enterprises, Offices, Commercial Premises
• Ethernet Gateway:  Supports large-scale access control systems across multiple doors/gates.  Shared user base without the need for communication wiring or dedicated servers.  Enclosed in a hermetic, weatherproof case with a tempered glass touch keypad.
• Programming:  Relay closure duration - Programmed via TTLOCK application on your smartphone within the range of 1-990 sec. “FREEWAY” mode can be scheduled or activated via administrator’s smartphone.
• Outdoor Installation:   Additional rain/sun cover recommended for direct exposure environments.
• User Capacity
  Card Capacity (MF 13.56MHz):  20,000 users
  Passwords:  150 users
  Fingerprints:  100 (expandable to 500 upon request)
  Remote controls:  16
• E-keys (via app):  Unlimited

Reference

• Technical Specification
