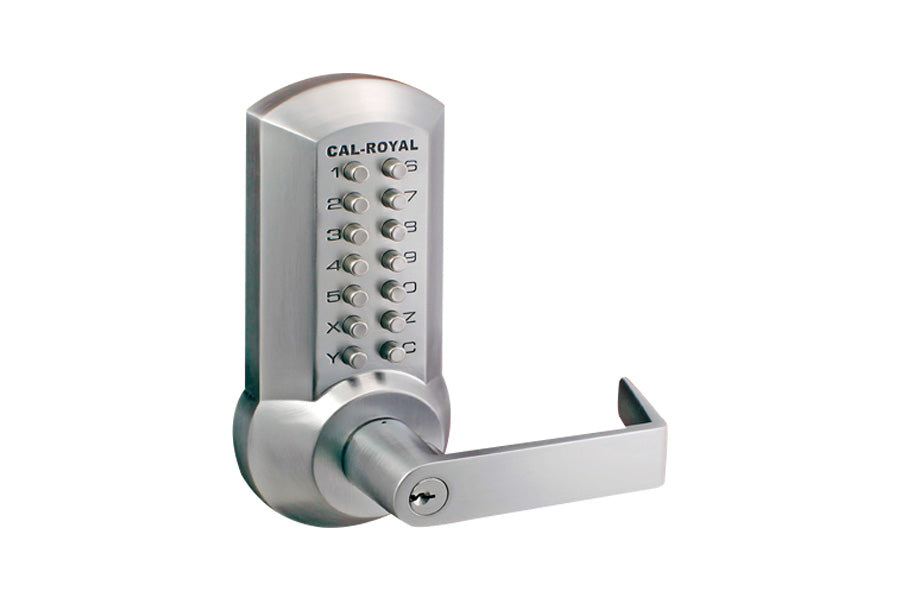

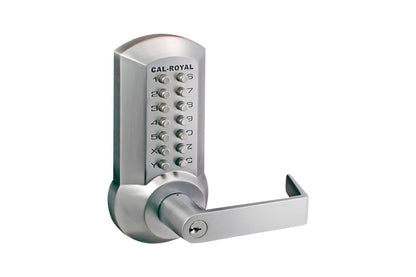

Cal-Royal CRCODE204 Mechanical Push Button Exit Device Lever Trim

Mechanical Stand Alone Push Button Lock and Exit Device Trim with Breakaway Lever Feature

Features

• Meets ADA requirements specially designed for Barrier Free Application. Conforms with ANSI A156.2, Series 4000 Grade 2

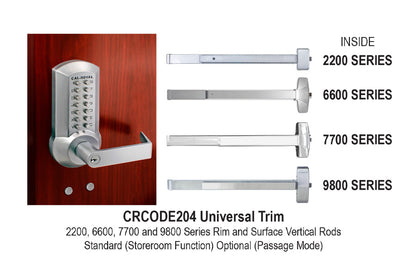

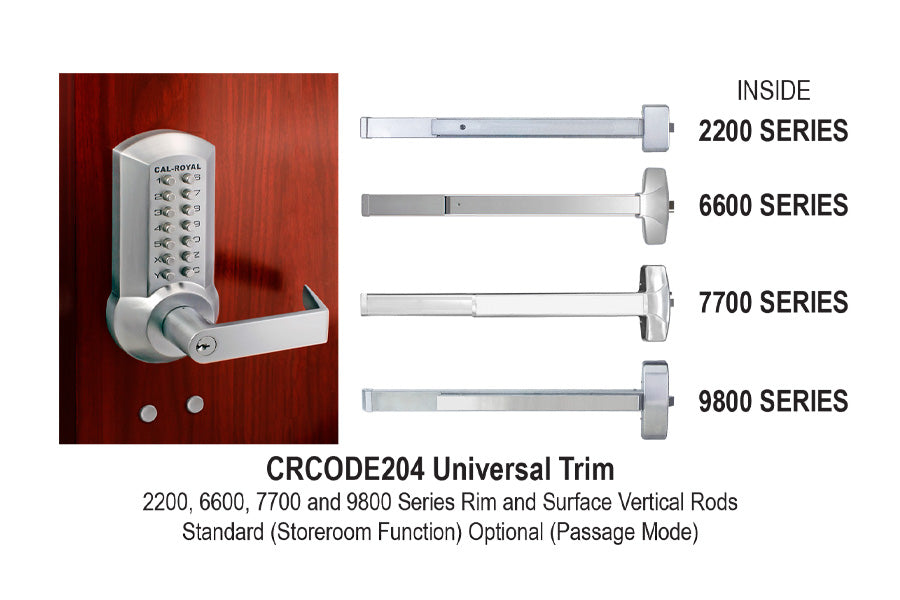

• Function:   Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever.  For use with 2200, 6600, 7700, and 9800 Series Rim and Surface Vertical Rods.
• 1 - 12 Digit Code
• Single Code User
• Key Override
• Easy on-the-door code change without removing the lock
• Code-Free Option (Passage)
• Breakaway Lever Design
• Clutch-Free Mechanism
• Weather Resistant
• Non-Handed
• More than 8000 non-sequential possible code combinations
• For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings

Specifications

• Keyway:  Schlage "C" Keyway
• Door Thickness:   1-3/4"
• ADA Compliance:  Meets ADA requirements – A117.1 Accessibility Code
• Usage:  Medium Duty
• Handing:  Non-handed, completely reversible
• Door Applications:  Interior or Exterior Doors

Reference

• Technical Specification
• Installation Instructions
