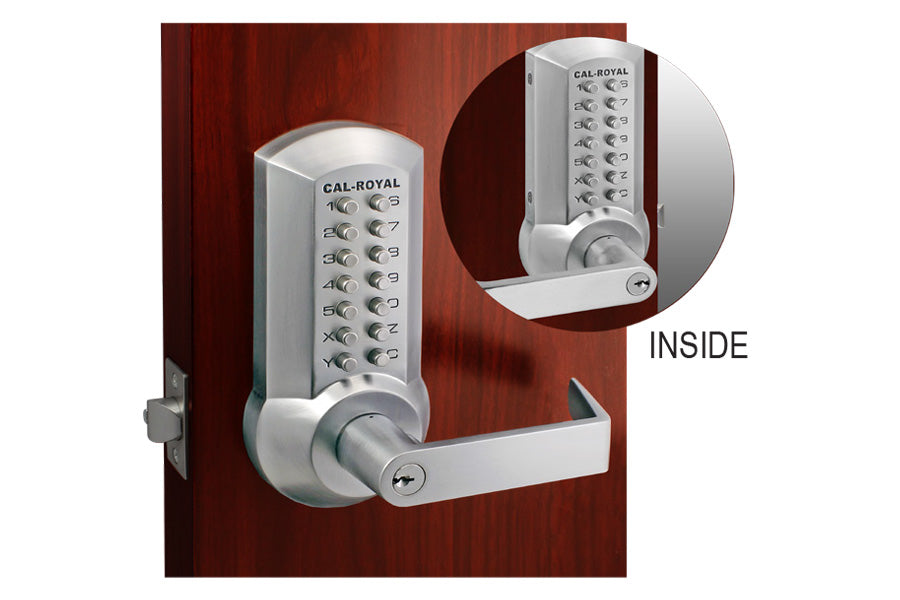

Cal-Royal CRCODE203 Mechanical Pushbutton Lever Lock, Double Coded with Key Override

Mechanical Stand Alone Push Button Lock and Exit Device Trim with Breakaway Lever Feature

Features

• Meets ADA requirements specially designed for Barrier Free Application. Conforms with ANSI A156.2, Series 4000 Grade 2
• Function:   Latch bolt operated by lever from either side, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever. Default Function:  Institution, Optional Function:  Storeroom, Passage Mode
• Easy installation covers 161 prep (2-1/8″ hole)
• 1 - 12 Digit Code
• Single Code User
• Key Override
• Easy on-the-door code change without removing the lock
• Code-Free Option (Passage)
• Breakaway Lever Design
• Clutch-Free Mechanism
• Weather Resistant
• Non-Handed
• More than 8000 non-sequential possible code combinations
• For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings

Specifications

• Keyway:  Schlage "C" Keyway
• Backset:  2-3/4"
• Door Thickness:   1-3/8" to 2-1/4"
• ADA Compliance:  Meets ADA requirements – A117.1 Accessibility Code
• Usage:  Medium Duty
• Cylinder & Keyway:  6-Pin conventional, keyed different, with 2 keys
• Latch:  1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
• Strike:  4-7/8" ASA Strike
• Handing:  Non-handed, completely reversible
• Door Applications:  Interior or Exterior Doors

Note:  Additional accessories available.  Please specify upon order.

• CRSLD - CRCODE Series Deadlatch  2-3/8", 2-1/4" x 1" Faceplate ($18.00)
• EZCHKEY - Easy Code Change Key ($2.00)
