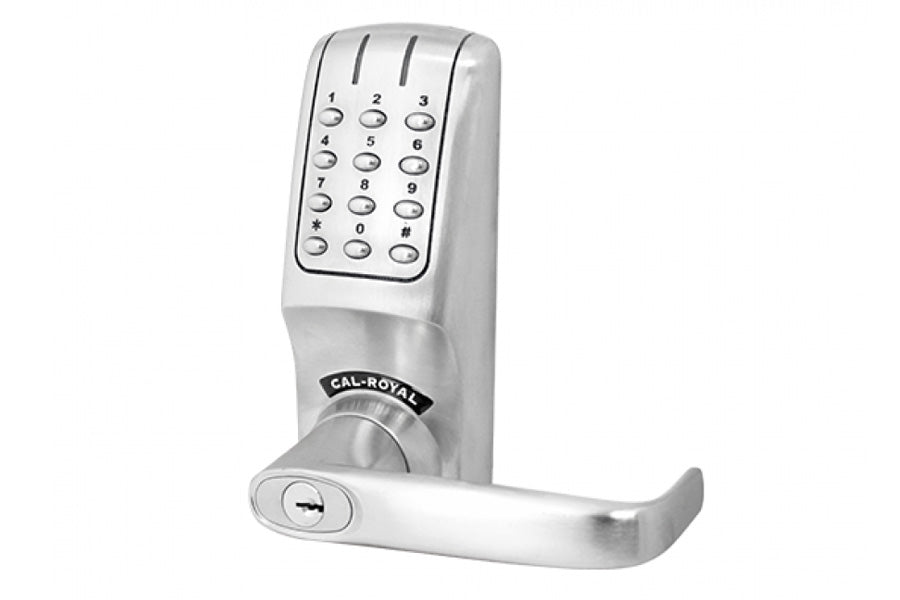

Cal-Royal CRCODE007 Heavy Duty Rigid Keyless Mechanical Lock

Features

• Dual mode for code free entry either mechanically by key or electronically thru the keypad
• Designed for 7700 and 9800 Series Rim Exit Devices
• Can store up to 90 different numeric user codes in 4, 5 or 6 digits
• Settings remain in memory when batteries are removed
• Audible alarm sounds after 3 incorrect attempts
• Connections available for remote release switch and automatic lock activation
  when linked to Fire alarm system
• Can be used as Storeroom or Classroom function
• Factory default set as Storeroom function
• Fast and easy programming via master code
• Comes standard with 2 levers (for LH or RH handing)

Specifications

• Usage:  Heavy Duty
• Handing:   Right Hand, Left Hand
• Keyway:  Schlage "C" Keyway

• ADA Compliance:  Meets ADA requirements – A117.1 Accessibility Code
• ANSI Grade 1
• Compatible Devices:  9800 Series, 7700 Series
• Cylinder Format:  Conventional
• Door Thickness:  1-3/4"
• Finish:  US26D (Satin Chrome)

Reference

• Technical Specification
• User Manual
• Installation Instructions
