Cal-Royal Products, Inc.

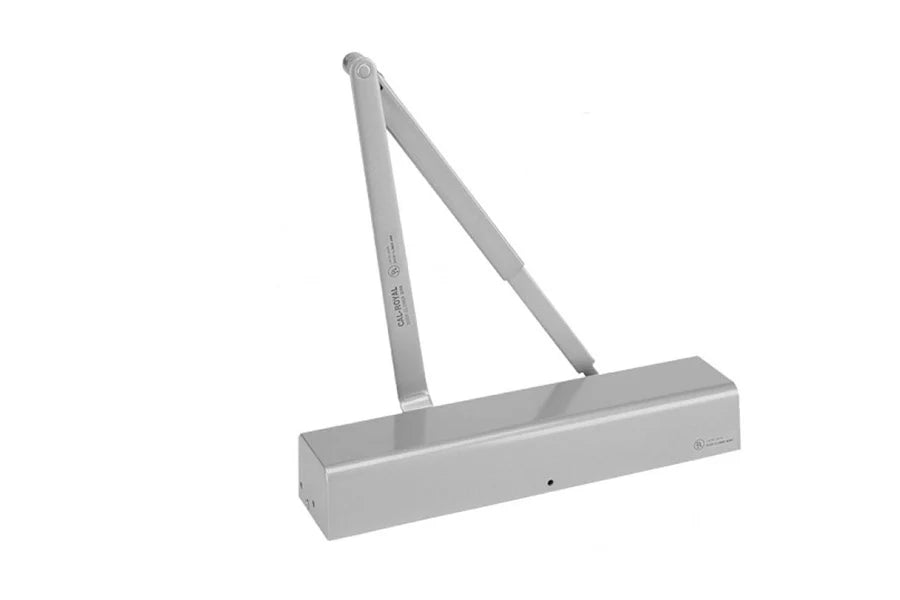

Cal-Royal CR801DA Door Closer

SKU:CR801DA ALUM

$135.00 USD

Sale Sold out

Shipping calculated at checkout.

Color: ALUM

Quantity

Grade 1 ADA Medium Duty Commercial Delayed Action Door Closer

Delays closing from 120° to 70°
Delay time adjustable up to approximately 1 minute
Hydraulic door closer with standard adjustable back-check function
ANSI A156.4 Grade 1, UL Listed conforms to standards UL10c and UBC7-2-1997
Universal Application. Non-Handed for Standard, Top Jamb or Parallel Arm Installation
Non-Sized, 1 thru 6 Factory Preset Size 3
Door Weights: 30 to 260 lbs
For interior and exterior use
Barrier Free (BF) Meets ADA regulations. Size 1 thru 6 engineered with reduced spring power to provide easier opening for handicapped or elderly

Usage:	Medium Duty
Fire Rating:	UL Listed
Spring Size:	Adjustable Spring Size 1-6
Handing:	Non-Handed
Door Application:	Hollow Metal, Wood or Aluminum
Templating (Hole Pattern):	3/4" x 12"
ANSI/BHMA Standard:	ANSI 156.4 Grade 1
ADA Compliance:	Meets ADA requirements – A117.1 Accessibility Code
Body Construction:	Cast Aluminum Body
Cover:	Full cover
Mounting Options:	Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
Warranty:	Limited Lifetime Warranty
