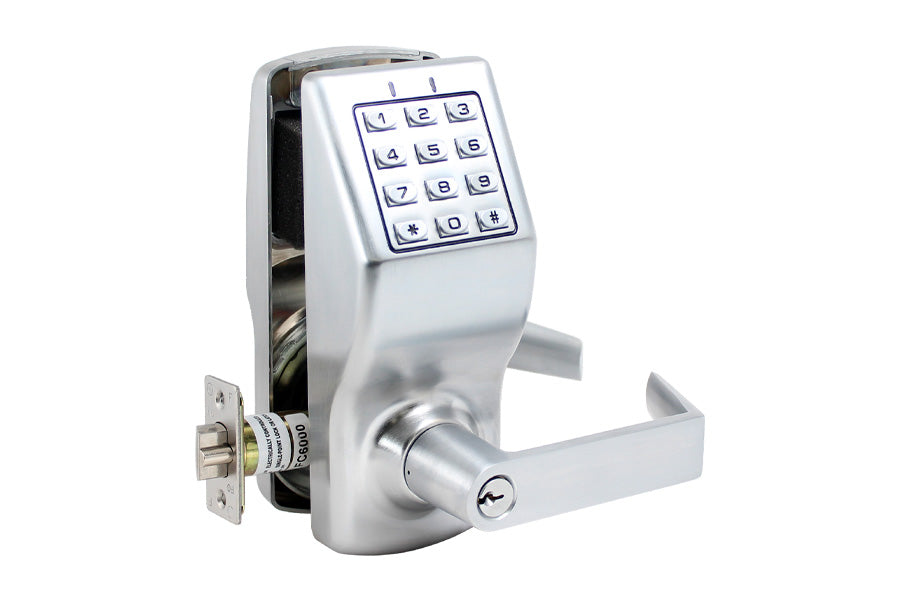

Cal-Royal CR3000 Heavy Duty Grade 1 Digital Keypad Door Lock

Features

• Master Code – performs all programming functions.
• Sub-Master Code – performs all programming functions except delete or change Master Code.
• Manager Codes – CR3000 can accommodate 10 Managers each having different codes and under each Manager has 9 Users (1 Manager + 9 Users = 1 Bank). Managers are capable of programming / adding and deleting User codes under his Bank. Managers are also capable of accessing the next higher bank until another Manager Code appears.
• Service Codes (5) – are one-time codes only. It cannot be used again. Once a Service Code is entered, the unit will unlock but will automatically delete the code.
• Passage Mode – once enabled, the unit is unlocked continuously until “Disable Passage Mode” is initiated.
• Tones and LED Indicators – can be programmed for different settings. Making sure that every key pressed is confirmed by an accompanying LED and/or tone.
• Next Free Code Location Finder – no need of guessing what free location is available in entering a new code. CR3000 can pinpoint and tell you where the next available location is.
• Code Locator Function – CR3000 can tell you the exact location of a certain code. Making it easy to determine what manager a user code is under.
• Keypad Anti-Tamper Lockout – if an invalid code is entered 3 times in succession, the unit will turn off for 30 seconds to prevent tampering.
• Remote Switch Terminal / Release – CR3000 provides 2 Remote Switch Terminal. Either can be used for an emergency push button switch, or connected to alarm systems such as fire alarms.
• Weather Resistant – CR3000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of +158°F to -22°F (+70°C to -30°C).
• Clutch Technology – the outside lever of the CR3000 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside, thus preventing breaking or tampering.
• Non-Handed – CR3000 can be installed for both left and right door opening.

Specifications

• Application:  For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.
• Door Ranges:  1 ⅜” to 2” thickness.
• Backset:  2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
• Latch Faceplate:  Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.
• Strikes:  ASA strike standard, “T” and full lip strike available on request.
• ANSI Standards: Meets or exceeds BHMA/ANSI A156.2 Series 4000 Grade 1 requirements.
• Power Supply:  4 AA Batteries (comes standard in packing)
• Clutch:  Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
• Cylinder and Keyways:  6-Pin solid brass “C” keyway standard.  Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset.  Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High-Security Cylinders.
• Interchangeable Core (IC):  Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Prefix “IC” before part number.
• Weather Resistant:  All models are weather-resistant for temperature ranges of +158 °F to -22 °F (+70 °C to -30 °C).
• Keypad: 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage, and emergency or service codes.
