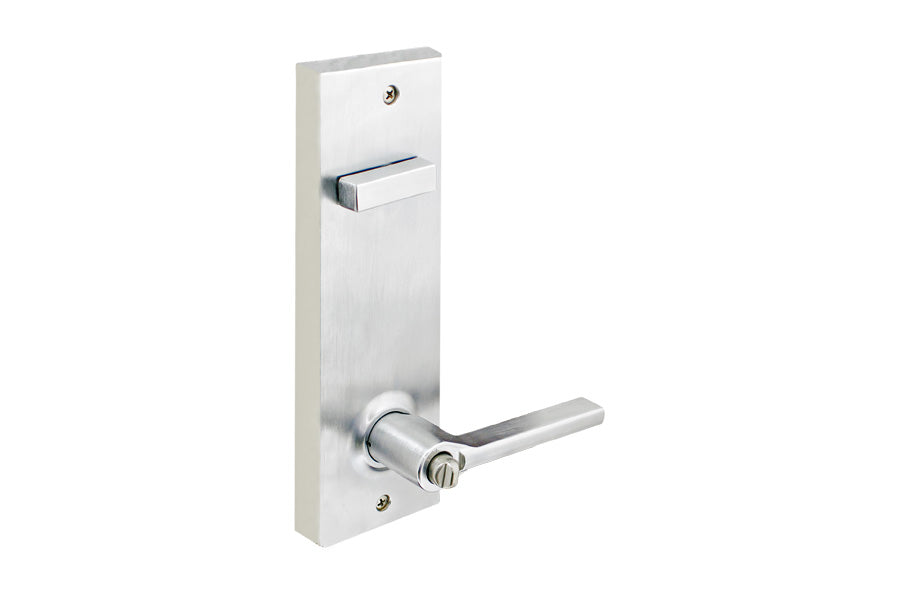

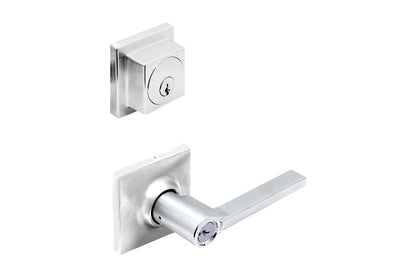

Cal-Royal CIL ROCHESTER Series Grade 2 Contemporary Interconnected Leverset

Specifications

• Simultaneous retraction on both latch and deadbolts from inside by turning the lever in a panic-proof exit situation. Top lock is heavy duty deadbolt with the bottom lock having a cylindrical body. High security with a double locking point using the keyed lock function.
• ANSI Standard:  Meet ANSI A 156.12 Series 5000 Grade 2 Requirements.
• Cylinder and Keyway:  6-Pin solid brass “C” keyway, Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High security Cylinders.
• Small Format Interchangeable Core:  Interchangeable Core Locks will accept compatible 6 or 7 pin cores with BEST, FALCON & ARROW.  Prefix “IC” before part number. Available combinated or uncombinated.  Temporary construction cores and factory keying with control key & master key available.
• Large Format Interchangeable Core:   Interchangeable Core Locks for Schlage.
• Housing:   Steel and Zinc dichromate finish for rust resistance.
• Strike:  Standard “T” strike furnished with lockset. 2-3/4" x 1-1/8" square strike with deadbolt.
• Escutcheon:   9-3/16” x 3-1/8” brass plated.  Packed with interior escutcheon. Optional external escutcheon available.
• Function:  Entrance, Passage
• Deadbolt:   1” Throw. Adjustable 2-3/4" or 2-3/8" Brass with hardened steel pin. Standard 2-1/4" x 1” faceplate, packed with 1/8" plastic filler for 1-1/8" door prep.
• Latch Bolt:   1/2" Throw.  “UL” Listed for 3-hour doors. 2-3/4" standard backset with 2-3/8" optional.
• Latch Face:  Standard 2-1/4" x 1" packed with 1/8" plastic filler for 1-1/8" door preparations
• Door Range:  1-3/8" – 1-3/4" door thickness
