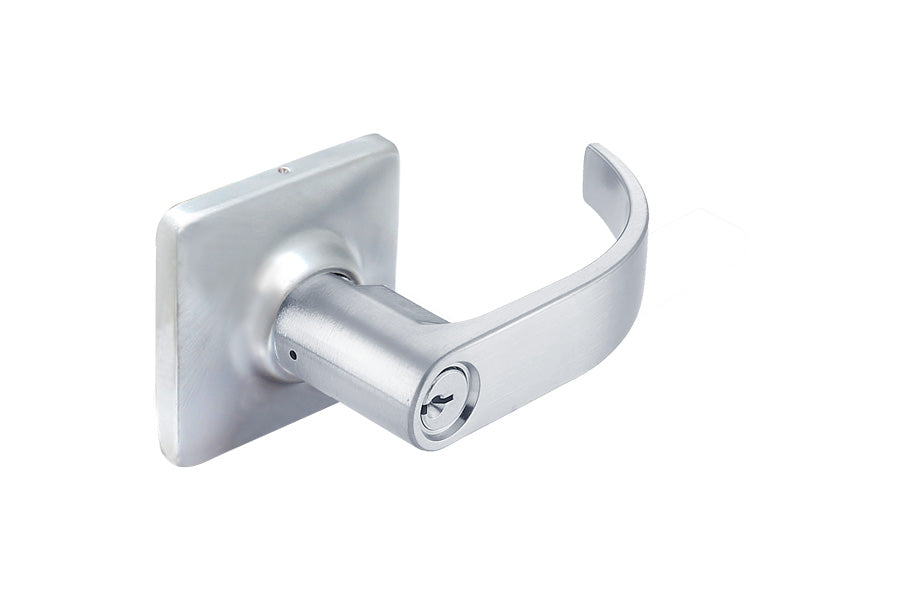

Cal-Royal Challenger DOV Series Grade 2 Non-Clutch Standard Duty Cylindrical Leverset

Specifications

• For offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings
• Door Ranges:   1-3/8" to 2" thickness door
• Backset:  2-3/4" Standard, Optional 2-3/8", 3-3/4", and 5"
• Latch Bolt:  UL Listed 1/2" throw solid brass, reversible RH or LH applications, UL Listed

• Latch Faceplate:  2-1/4" x 1" square corner packed with plastic filler for 1-1/8" width
• Strikes:  ASA strike standard, "T" and full lip strike available upon request
• Keying:  6-Pin "C" keyway cylinder
• Exposed Trim:  Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish
• Interchangeable Core available

Reference

• Technical Specification
• Installation Instructions
