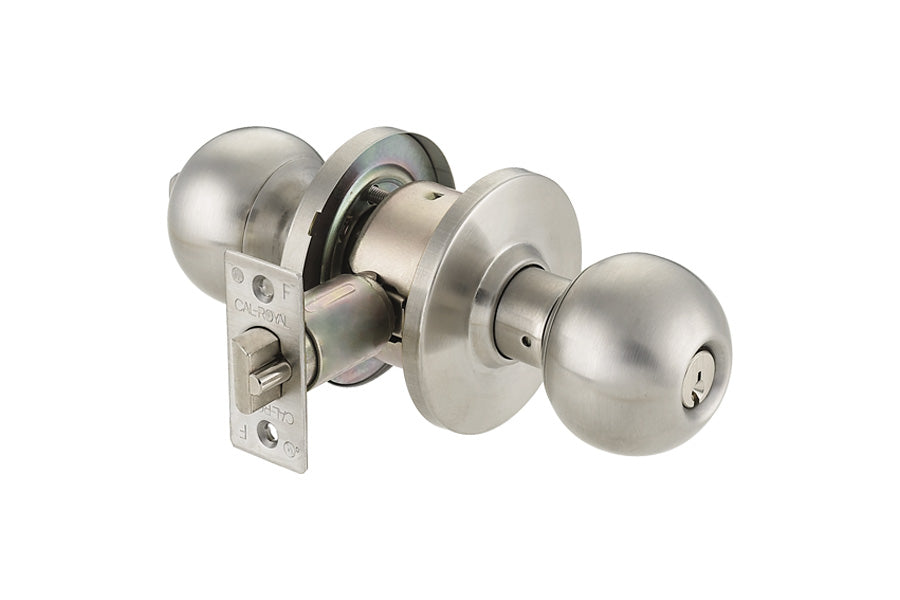

Cal-Royal Barrington Series Standard Duty Cylindrical Lockset

Specifications

• ANSI Standard A156.2 Grade 2
• Meets or exceeds requirements of BHMA/ANSI A156.2 series 4000 for grade 2 (FF-H-106C).
• Door Ranges:  1 3/8" to 1 3/4" thickness doors
• Backset:  2 3/4" Standard, 2 3/8", 3 3/4" and 5" extension available.
• Strikes:  ANSI strike standard, 4 7/8" x 1 1/4".  Optional "T" and full lip strike available on request.
• Keyways:  6-Pin solid brass "C" keyway standard.  Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders KEYING- 6-pin "C" keyway cylinder, 2 keys per lock.
• Bore Diameter: - 1" for latch. 2 1/8" for lock housing.
• Interchangeable Core:  Compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and masterkey available.
• Latch Faceplate:  2 1/4" x 1 1/8" for 2 3/4" backset, 2 1/4" x 1" for 2 3/8" backset.
• Exposed Trim:  Wrought brass, bronze or stainless steel.
• Available Finish:  US32D Stainless Steel
