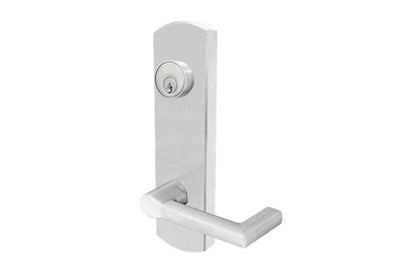

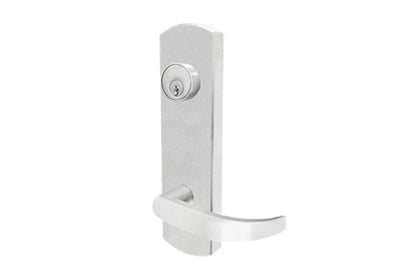

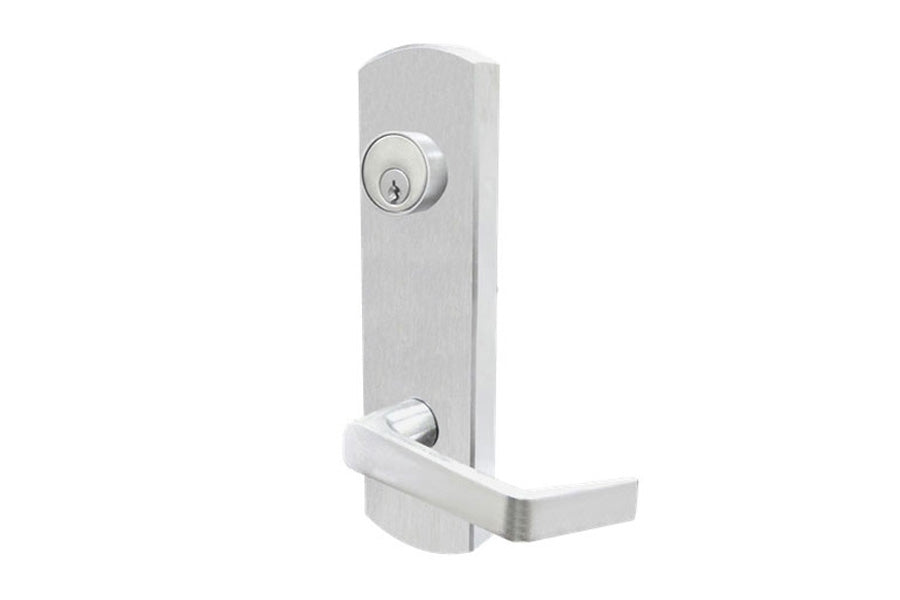

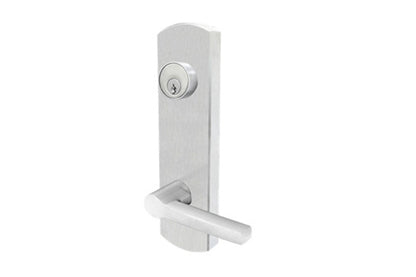

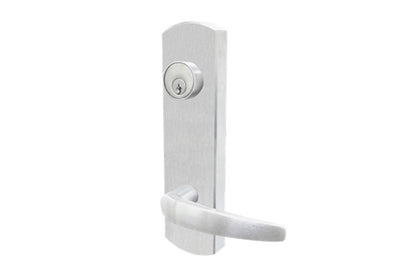

Cal-Royal A9800 Series Exit Device Rigid Lever Escutcheon Trim

Specifications

For Cal-Royal Cal-Royal A9800 Series Exit Device
Rigid, Non-Clutch Mechanism
Double Heavy-Duty spring support to prevent sagging and enhance operation
Grade1, thru-bolted design. Non-handed design
Hardened steel heavy-duty tailpiece. Available for Fire and Non-Fire Rated rim and vertical rod exit device.
Standard 6-Pin Schlage "C" Mortise Cylinder included
Door Thickness - Standard 1 ¾”. For 2 ¼” thick door use additional Part # TAIL3
Escutcheon Dimensions - 2 ¾” width x 10 ¼” length. Lever length: 4 ¾”. Fits and covers 2 ⅛” 161 cutout
ANSI Function 08 - Rigid Entrance, key locks or unlocks escutcheon trim - operates as classroom function
ANSI Function 09 - Rigid Storeroom, Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked
ANSI Function 14 - Passage, trim always operable and free
ANSI Function 02 - Dummy escutcheon trim
KEYWAY - 6-Pin solid brass “C” keyway Mortise Cylinder standard.
