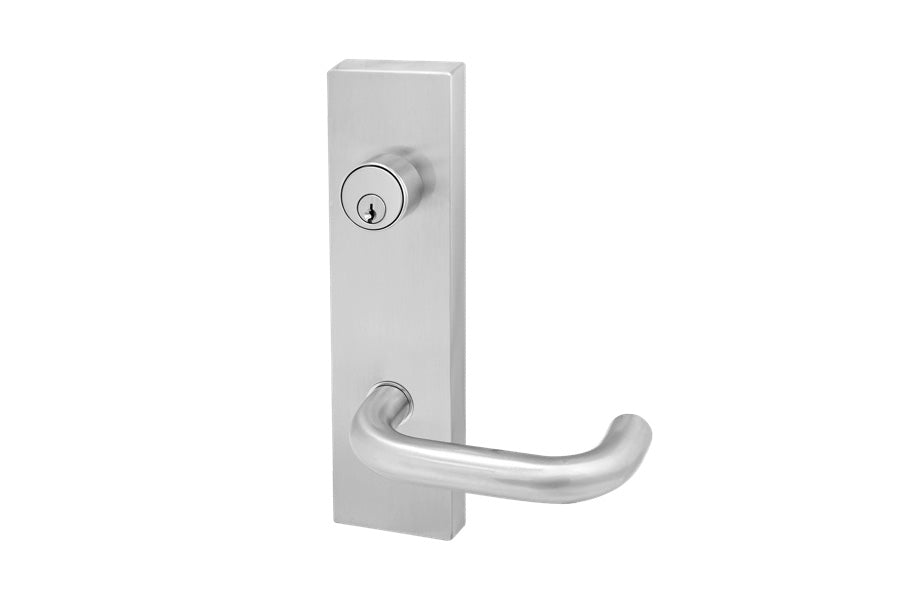

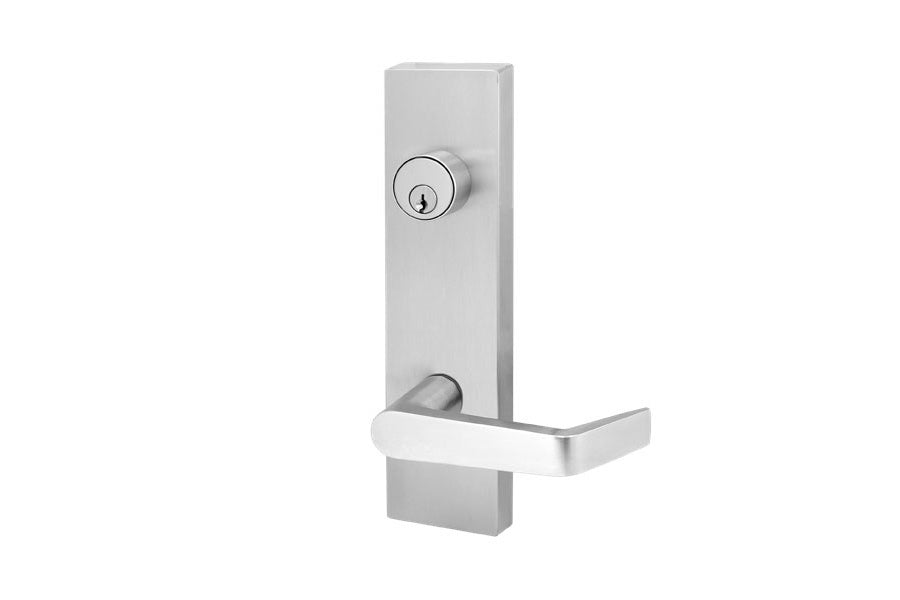

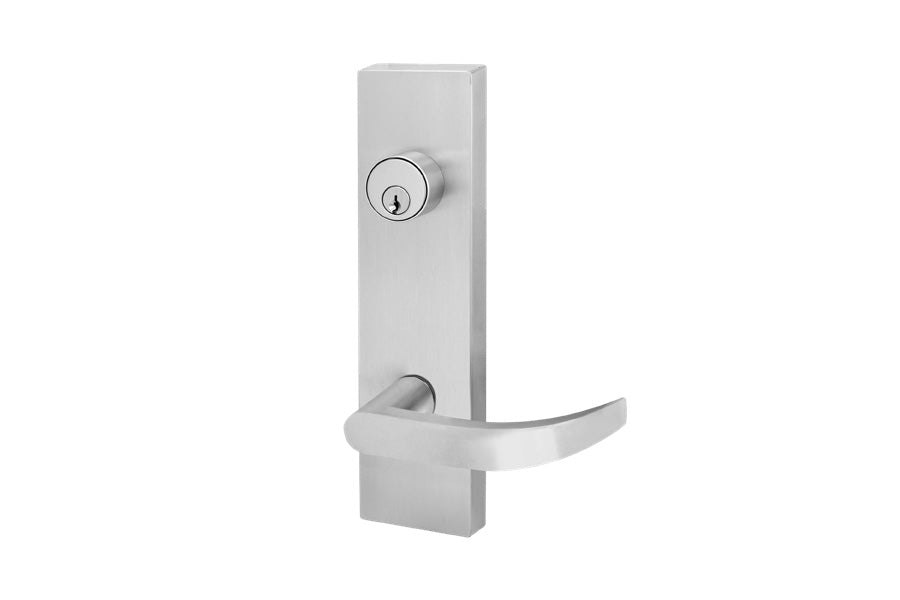

Cal-Royal A9800 Series Exit Device Heavy-Duty Clutch Lever Escutcheon Trim

Specifications

• For use with Cal-Royal A9800 Series Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices
• High frequency abusive situation such as schools, hospital, industrial/institutional
• Clutch Mechanism

• Double Heavy-Duty spring support to prevent sagging and enhance operation
• Grade 1, thru-bolted design. Non-handed design
• All Stainless Steel heavy-duty tailpiece.
• Standard 6-Pin Schlage "C" Mortise Cylinder included
• Door Thickness - Standard 1 ¾” to 2”.  For 2” or 2 ½” thick door use additional Part # TAIL9
• Escutcheon Dimensions - 2-5/8” width x 10-5/8” length. Lever length: 4 5/8”.
  Fits and covers 2 ⅛” 161 cutout
• ANSI Function 08 - Clutch Entrance, key locks or unlocks escutcheon trim - operates as classroom function
• ANSI Function 09 - Clutch Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked.
• ANSI Function 14 - Passage, trim always operable and free
• ANSI Function 02 - Dummy escutcheon trim
• KEYWAY - 6-Pin solid brass “C” keyway Mortise Cylinder standard.
• FINISH - US32D Satin Stainless Steel
