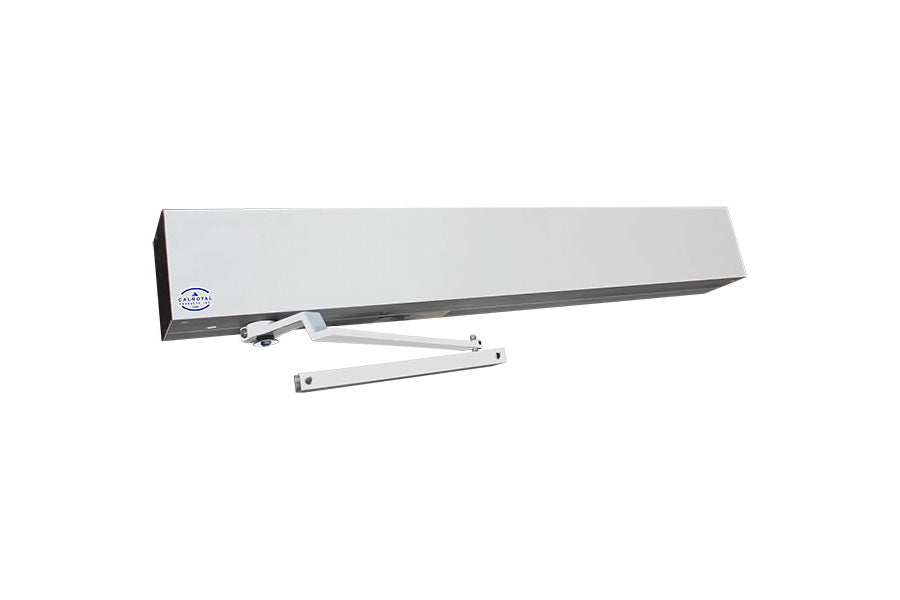

Cal-Royal 8600 Series Automatic "Low Energy" Swing Door Operator
Cal-Royal 8600 Series Automatic "Low Energy" Swing Door Operator
SKU:8601-39-RHR-ALUM
Regular price
$3,600.00 USD
Regular price
Sale price
$3,600.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- Optional interior or exterior operation
- Interior operator with Clutch System but without wind dampening and Power Close with 5 force settings feature
- ADA Compliant and conforms to ANSI A156.19/ UL235 standard for door operators
- 700 lbs door capacity and 48" wide
- Programmable controller with easy setup and programming
- Push a nd Go feature opens a door when pushed manually
- Obstacle detection feature for open and closing ensure the safest use possible
- On-board Power Supply, 12/24 VDC 1.2A for strike and latches
- Adjustable closing and Opening speeds
- Adjustable closing force
- Adjustable latching speed and position
- Electrified lock input and delay
Specifications
| Application: | Low Energy |
| Door Weight: | 700lbs (317kg) per leaf, 48" wide |
| Dimensions: | 5.5" (140mm) H x 4.5 (115mm) D |
| Standard Dimension (Length): |
Single: 39”, 45”, & 51” |
| Net Weight: | 16 kg (35 lbs) Approx |
| On Board Power Supply: | On board 1.2A 12/24VDC |
| Power & Consumption: | 90 VAC - 250 VAC, 100W Max |
| Motor Rating: | 1/4 hp, 24VDC, 3A max |
| Rated Operation: | Continuous opening and closing cycles |
| Closing Force: | Adjustable pressure by spring tension |
| Operation during power failure: | Low manual resistance when opened by hand. Door closing by spring. |
| Motor Type: | Low revolution, DC motor |
| Braking (Open back check & close latch) | Adjustable by control unit |
| Before Open Latch Assist | Select power close of 2.0 sec. "before open" latch assist to prevent binding of electric strike |
| Opening Time, Full Closed to Back Check | Adjustable (Open Speed in 20 Steps) |
| Opening Time, Bach Check to Full Open | Adjustable (Back check speed in 5 steps/Back check distance in 15 Steps) |
| Closing Time, Full open to latch | Adjustable (Close speed in 15 Steps) |
| Closing Time, Latch to full closed | Adjustable (Close speed in 5 steps/Latch distance in 15 steps) |
| Hold Open | Pulse energy to motor. No overheating. Continuous Hold Open |
| Obstacle detection (without safety sensor) |
Opening: If door detects an obstacle, power is cut to motor. (Sensitivity adjustable by 'Current Overload' setting) Door will close by spring power at low speed. |
| Obstacle detection (with safety sensor) | Safety sensor connected to Safety 1 input will prevent a door opening or prevent the door to go in the closing cycle when the safety sensor is active. Safety sensor connected to Safety 2 input will stall or crawl (Installer selective) the door when the safety sensor is active. |
| Operating Environment |
Ambient temperature -18 deg ~ +50 deg.(no condensation or icing) Ambient humidity 30% to 85%RH (no hazardous materials must be present in the atmosphere) |
