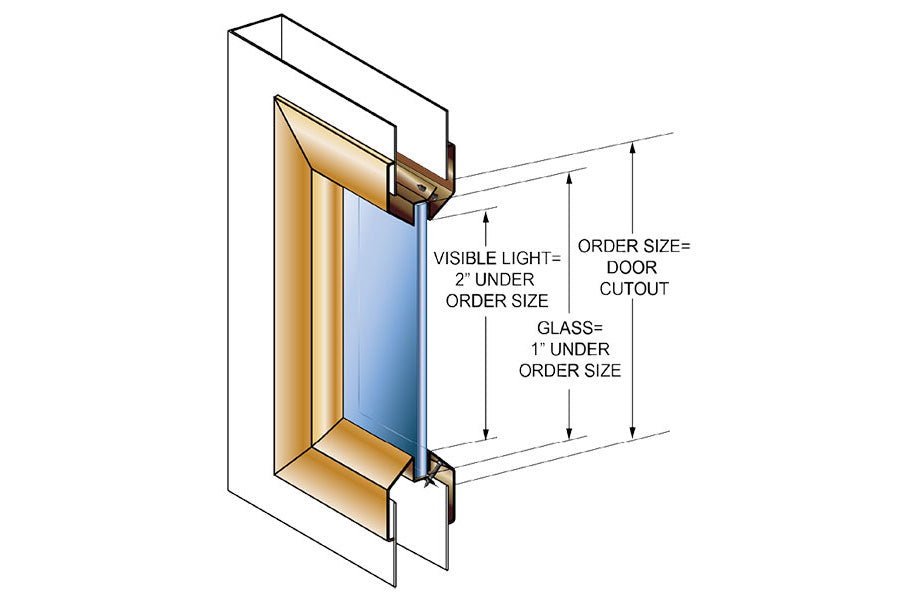

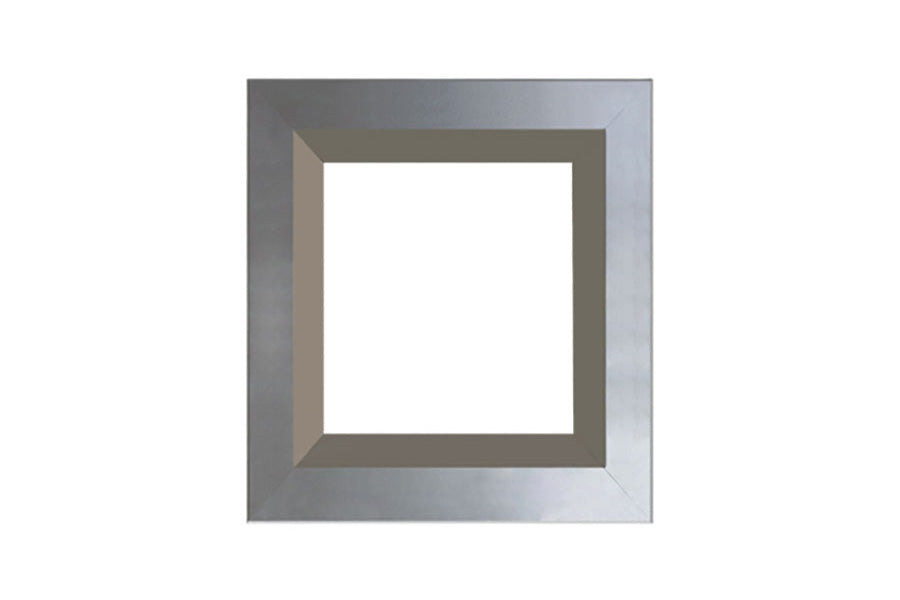

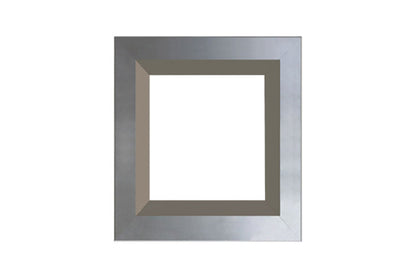

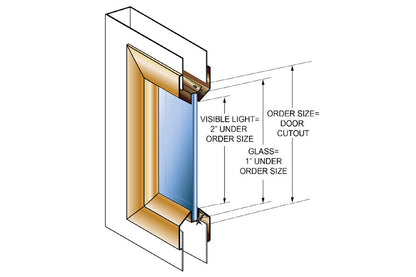

Cal-Royal 10VL Series Vision Lite Frame Standard Profile for 1" Thick Glass

Specifications

• 20 - 180 minute fire-rated steel vision lite for 1" Glass
• Standard profile beveled vision lite
• 20 gauge cold rolled steel
• Mitered welded corners with counter-sunk mounting holes
• For use with 1” glass thickness
• Designed for use with 1-3/4" doors only
• Fastener:  # 8 x ⅞” flathead phillips head SMS
• Frame Fire Rating:  Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201) and CSI CODE 0870 00
• Finish:  Dark Bronze
